air admittance valve DN40 with tee DN40x1 1/2'
air admittance valve DN40 with tee DN40 x 1 1/2'

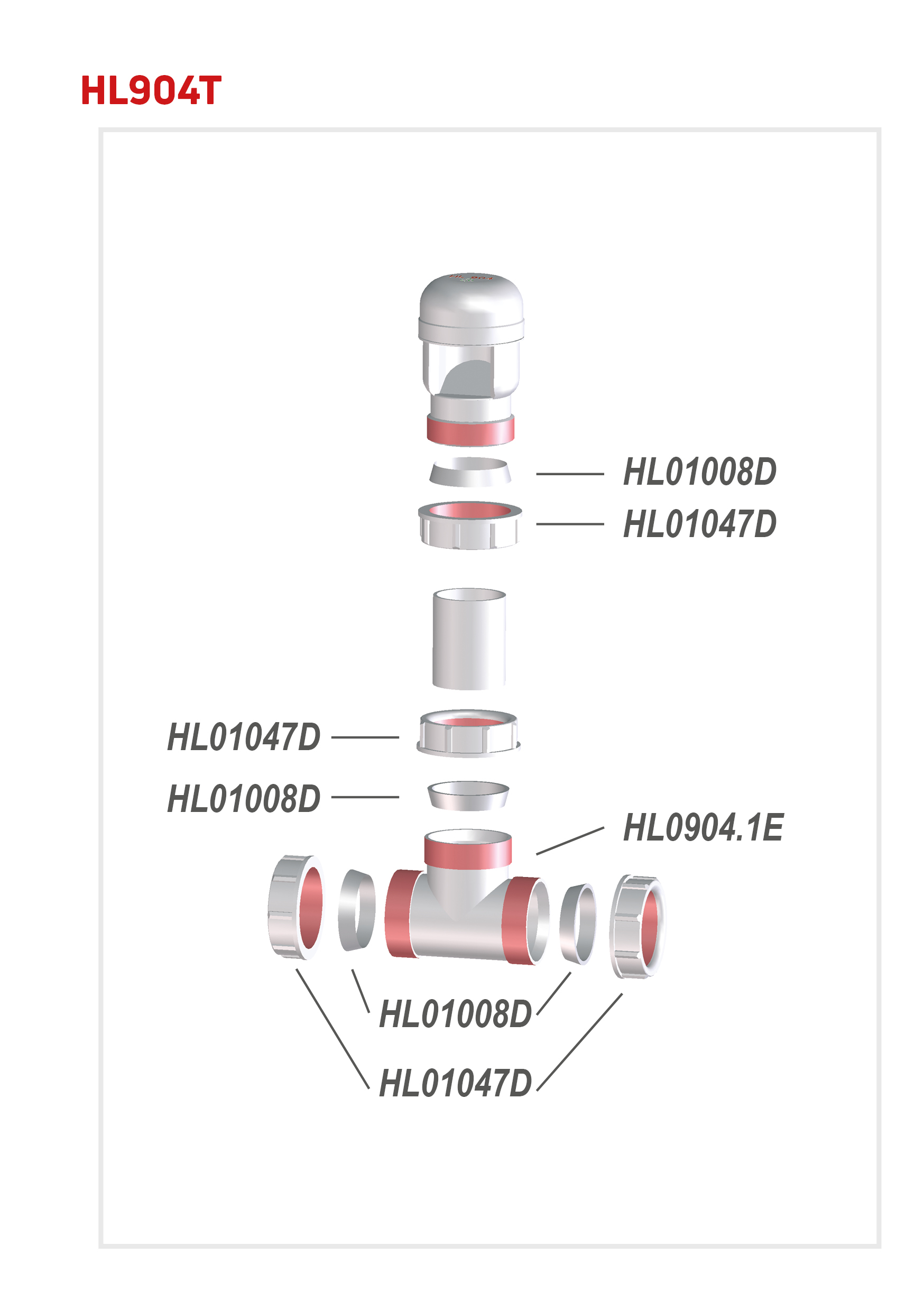

spare parts
HL01008D01 Kitchen traps/Attachments/Spare parts/HL01008Dgasket wedge shaped T40
HL01047D01 Kitchen traps/Attachments/Spare parts/HL01047Dlocking nut 1 1/2'
HL0904.1E10 Air admittance valves/Attachments/Spare parts/Spare Parts Air Admittance Valves
/HL0904.1Etee DN40x1 1/2'
HL90410 Air admittance valves/Products/Surface mounted/HL904/HL904air admittance valve DN40
HL01047D.G10 Air admittance valves/Attachments/Spare parts/Spare Parts Air Admittance Valves
/HL01047D.Glocking nut 1 1/2' grey
HL0904.0E10 Air admittance valves/Attachments/Spare parts/Spare Parts Air Admittance Valves
/HL0904.0Eadapter DN32/50
technical data
| material | PP |
| dimension | DN40 |
| capacity | 5,5 l/sec |
| weight | 0,13 [kg] |
| EAN | 9003076919048 |
| installation height | 130 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN12380-A1 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,136 [kg] |
| height/width/depth | 180/100/100 [mm] |
| volume | 0.0018 [m3] |
carton
| unit | 50 [pcs.] |
| weight | 7,463 [kg] |
| height/width/depth | 338/387/592 [mm] |
| volume | 0.077437152 [m3] |
HL904T_pr
HL904T_B
HL904T_gr
