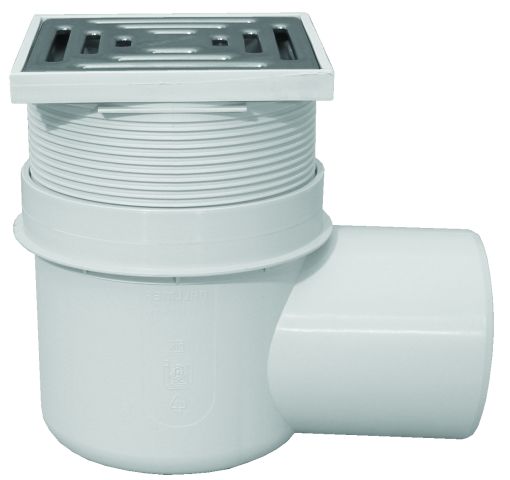

basement drain DN110 horizontal with trap seal, cut-to-size plastic grate frame 19 - 65 mm / 148 x 148 mm and stainless steel grate 138 x 138 mm
| material | PP |
| dimension | DN110 |
| capacity | 1,67 l/sec |
| weight | 0,873 [kg] |
| EAN | 9003076999729 |
| installation height | 170 mm |
| grate frame |
| grate | Edelstahl 138 x 138 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
| unit | 1 [pcs.] |
| weight | 1,07 [kg] |
| height/width/depth | 160/180/300 [mm] |
| volume | 0.00864 [m3] |
| unit | 176 [pcs.] |
| weight | 209 [kg] |
| height/width/depth | 2100/850/1250 [mm] |
| volume | 2.23125 [m3] |
