used with
HL310N-3121Product overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical, 121x121mm KLICK-KLACK/115x115mm "Seine"
HL310Prblue-3121Product overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size grate frame 10 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Seine" and supporting frame / cover. Comes with lot cover. System "KLICK-KLACK"
HL510N-3121Product overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal, 121x121mm KLICK-KLACK/115x115mm "Seine"
HL510Prblue-3121Product overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, with Primus Blue, cut-to-size grate frame 12 - 80 mm / stainless steel frame KLICK-KLACK 121 x 121 mm, stainless steel grate 115 x 115 mm "Seine" and supporting frame / cover.

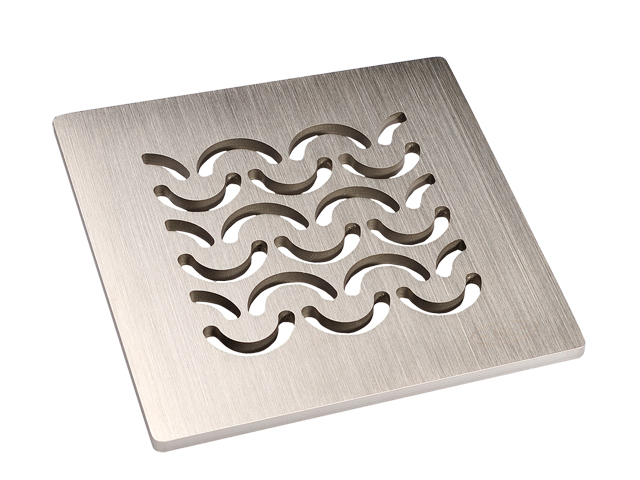

technical data
| material | Edelstahl V2A |
| dimension | 115 x 115 mm |
| capacity | < 0,5 l/s |
| weight | 0,42 [kg] |
| EAN | 9003076015429 |
| installation height |
| grate frame |
| grate |
| load class | L - 1,5 t |
| inlet |
| standards |
NOT TRANSLATED: PS
| unit | 1 [pcs.] |
| weight | 0,44 [kg] |
| EAN/pack. | 9003076015429 |
| height/width/depth | 10/125/125 [mm] |
| volume | 0,000156250 [m3] |
