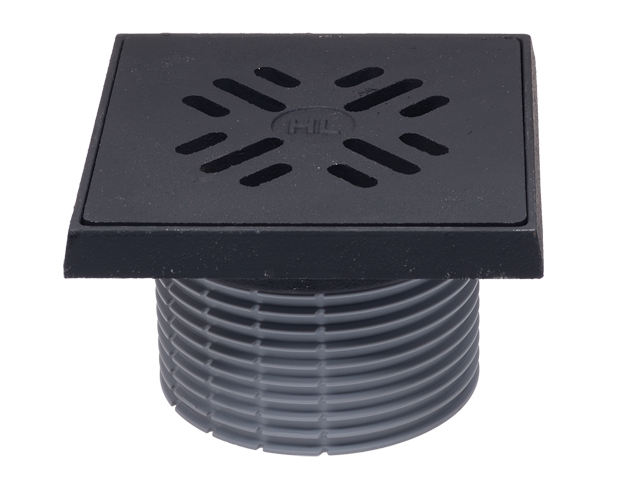

grating d 110mm/cast iron frame 150x150mm/137x137mm cast iron with trap seal
grating d 110 mm with cast iron frame 150 x 150 mm and -grate 137 x 137 mm with trap seal. Total height 93 mm, frame height 30 mm
spare parts
HL01067D13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL01067DO-ring 92x4mm
HL037G.1E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL037G.1Ecast iron grate 137x137mm
HL0510.7E13 Floor drains/Attachments/Trap insert/HL0510/HL0510.7Etrap seal cartridge
HL0510.8E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL0510.8Ebell trap
attachment
HL090.4E12 Balcony and terrace/Attachments/Trap insert/HL090.4E/HL090.4Eflap cartridge
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NC12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NCextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
technical data
| material | PP |
| dimension | d 110 mm |
| capacity |
| weight | 2,122 [kg] |
| EAN | 9003076000630 |
| installation height | 93 mm |
| grate frame |
| grate | GG 137 x 137 mm |
| load class | L15 - 1,5 t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 2,253 [kg] |
| height/width/depth | 155/205/205 [mm] |
| volume | 0.006513875 [m3] |
