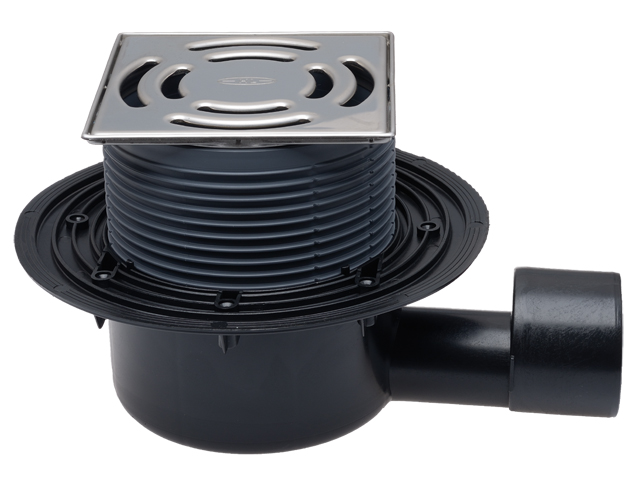

Floor drain DN50/75 horizontal with flange, siphon, 8-80 mm grating (may be cut off) with stainless steel frame 145x145 mm „Klick-Klack“, stainless steel grate 138x138 mm, lot cover for body and top
material | PE/PP/Edelstahl |
dimension | DN50/75 |
capacity | 1,0 l/s |
weight | 1,031 [kg] |
EAN | 9003076025442 |
installation height | 97 mm |
grate frame | 8-80 mm/145 x145 mm |
grate | Edelstahl 138 x138 mm |
load class | K3 - 300kg |
inlet |
standards |
unit | 1 [pcs.] |
weight | 1,358 [kg] |
EAN/pack. | 9003076025442 |
height/width/depth | 175/292/392 [mm] |
volume | 0,020031200 [m3] |
unit | 72 [pcs.] |
weight | 125,5 [kg] |
EAN/pack. |
height/width/depth | 1950/800/1200 [mm] |
volume | 1,872000000 [m3] |
