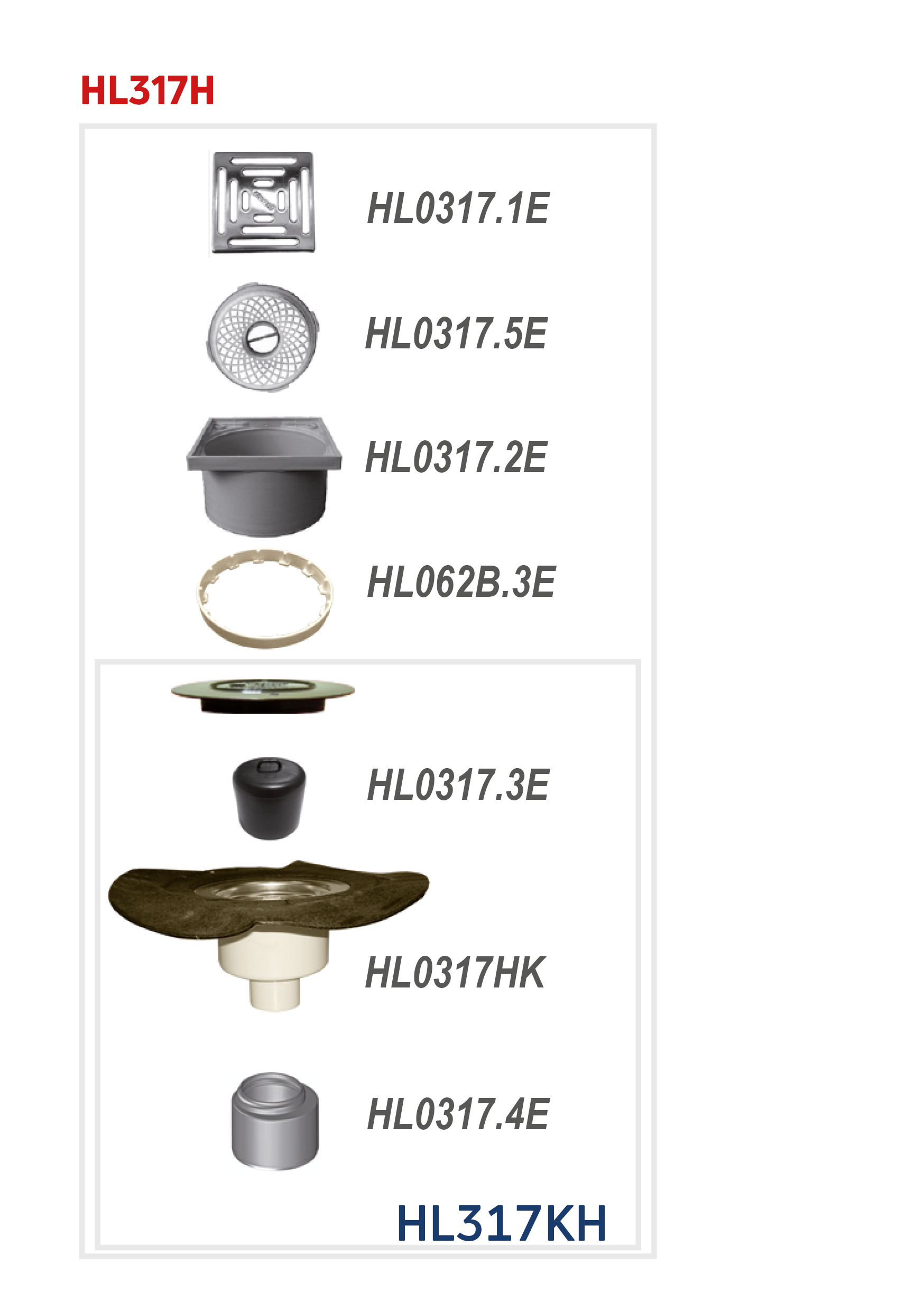

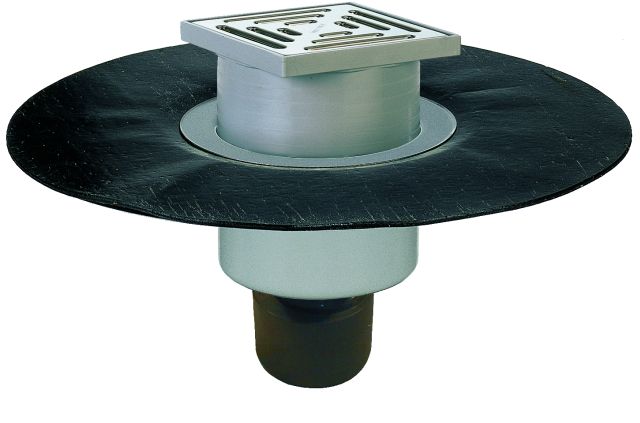

floor drain DN50/75/110 vertical with bitumen membrane d 500 mm for perfect and easy lap-joint waterproofing with bituminous membranes, trap seal, cut-to-size grate frame 20 - 70 mm / 147 x 147 mm, stainless steel grate 138 x 138 mm and strainer. Comes with lot cover.
| material | PP, Edelstahl |
| dimension | DN50/DN75/DN110 |
| capacity | 1,80 l/sec |
| weight | 1,985 [kg] |
| EAN | 9003076317110 |
| installation height | 220 mm |
| grate frame |
| grate | Edelstahl 138 x 138 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN 1253 |
| unit | 1 [pcs.] |
| weight | 2,46 [kg] |
| height/width/depth | 180/385/385 [mm] |
| volume | 0.0266805 [m3] |
| unit | 60 [pcs.] |
| weight | 158 [kg] |
| height/width/depth | 1900/800/1200 [mm] |
| volume | 1.824 [m3] |
