product link (product category - independent)

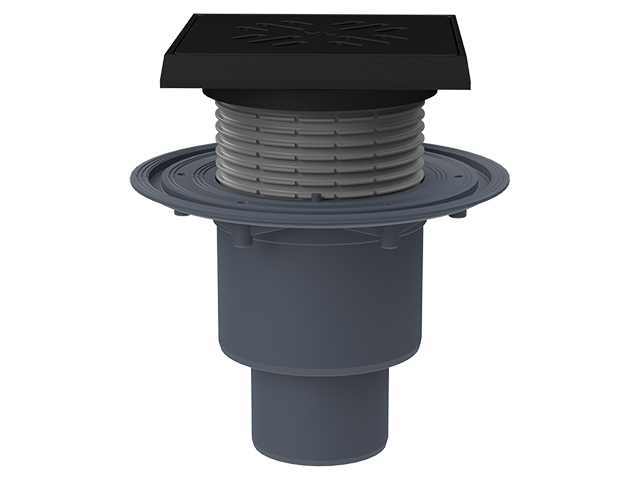

floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size plastic extension 34 - 75 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.
| material | PE, GG |
| dimension | DN50/DN75/DN110 |
| capacity | 0,67 l/sec |
| weight | 2,408 [kg] |
| EAN | 9003076004652 |
| installation height | 158 mm |
| grate frame |
| grate | GG 137 x 137 mm |
| load class | L15 - 1,5 t |
| inlet |
| standards | EN 1253 |
| unit | 1 [pcs.] |
| weight | 2,6 [kg] |
| height/width/depth | 155/225/295 [mm] |
| volume | 0.010288125 [m3] |
