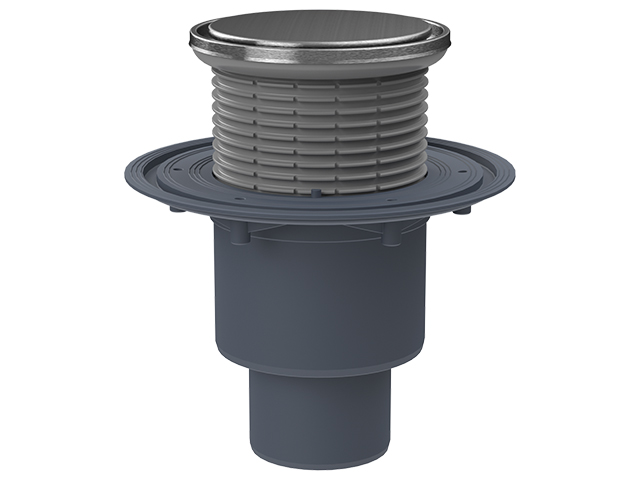

floor drain DN50/75/110 vertical round d 133mm/d 112mm
floor drain DN50/75/110 vertical with flange, trap seal, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.

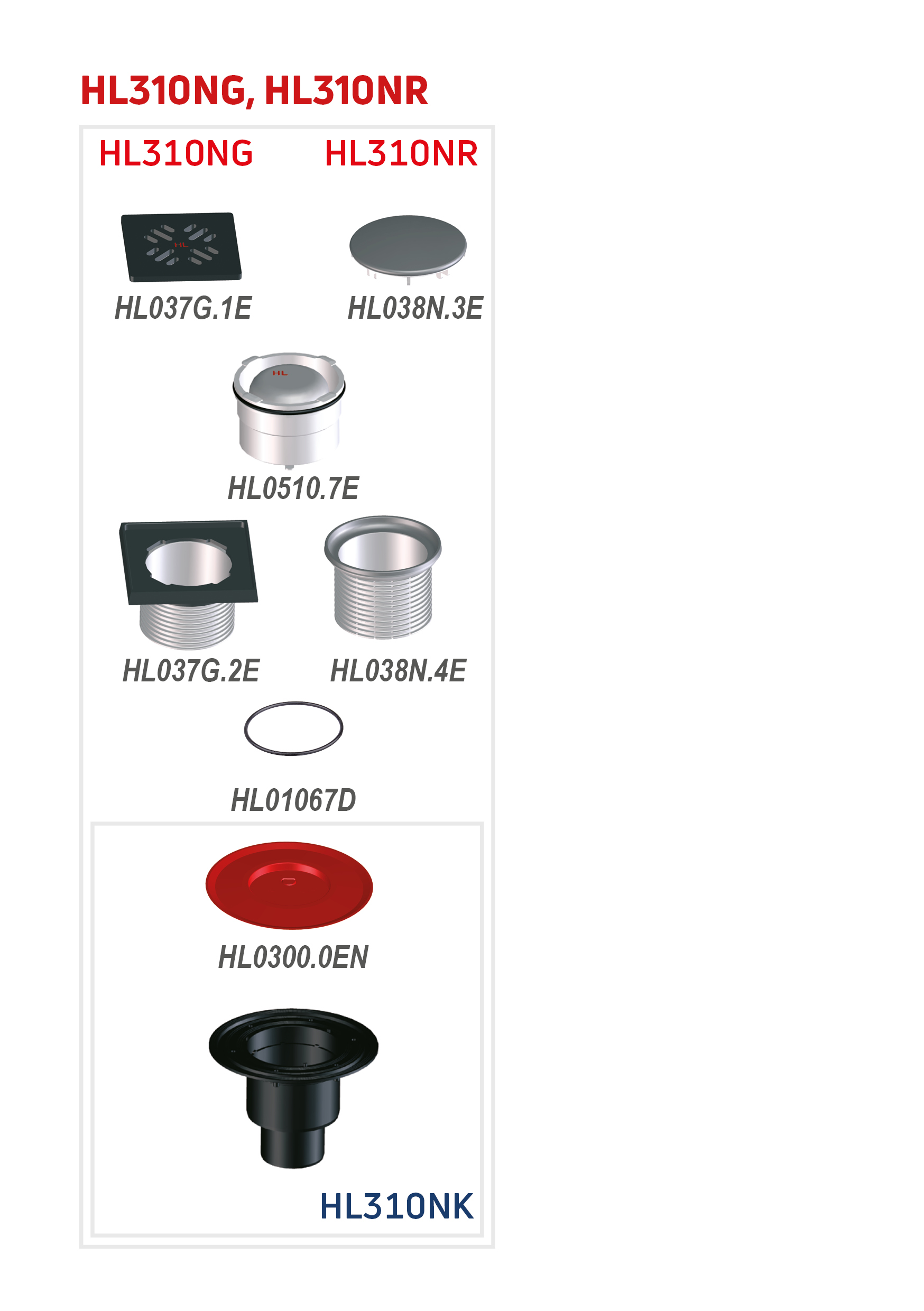

spare parts
HL38N.113 Floor drains/Attachments/Gratings/HL38/HL38N.1grating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal
HL038N.3E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL038N.3Estainless steel plate round d 112mm
HL038N.4E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL038N.4Egrate frame round d 110mm/93mm/stainless steel frame d 133mm incl. O-ring
HL0510.7E13 Floor drains/Attachments/Trap insert/HL0510/HL0510.7Etrap seal cartridge
attachment
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL84012 Balcony and terrace/Attachments/Fire protection/HL840/HL840fire collar R90 for HL310N series
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NC12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NCextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
technical data
| material | PP, PE, Edelstahl |
| dimension | DN50/DN75/DN110 |
| capacity | 0,67 l/sec |
| weight | 0,632 [kg] |
| EAN | 9003076006038 |
| installation height | 158 mm |
| grate frame |
| grate | Edelstahl d 112 mm |
| load class | K3 - 300 kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 1 [pcs.] |
| weight | 0,82 [kg] |
| height/width/depth | 155/225/295 [mm] |
| volume | 0.010288125 [m3] |
