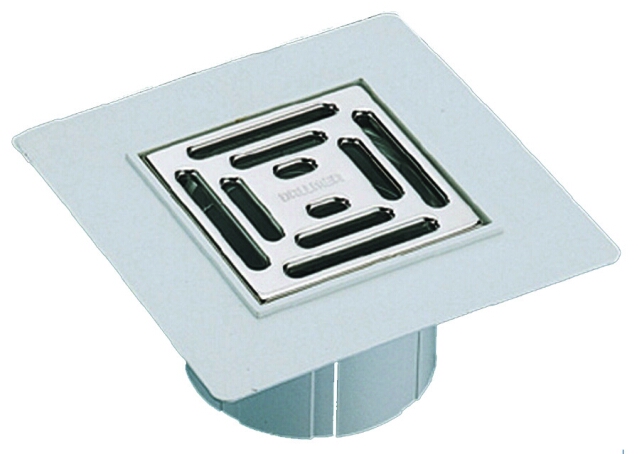

grating d 145mm sleek with PVC collar 206x206mm/138x138mm
grating 88 mm sleek / d 145 mm with PVC collar 206 x 206 mm and stainless steel grate 139 x 139 mm. Total height 88 mm, frame height 2 mm
spare parts
HL0317.1E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL0317.1Estainless steel grate 138x138mm
HL066P.1E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL066P.1Egrate frame d 145mm/88mm with PVC-collar 206x206mm
attachment
HL35013 Floor drains/Attachments/Extensions/HL350/HL350extension 130mm/d 145mm
HL01058D14 Sealing kits / Extensions/Attachments/Spare parts/Spare Parts Sealing Sets / Riser Elements/HL01058Dtailback gasket for stainless steel flange 220x155mm
HL062B.3E11 Roof drains/Attachments/Spare parts/Spare Parts Roof Drainage/HL062B.3Eadapter
HL16011 Roof drains/Attachments/Drainage elements/HL160/HL160gravel guard d 150mm
HL350.111 Roof drains/Attachments/Extensions/HL350/HL350.1extension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1H13 Floor drains/Attachments/Extensions/HL350/HL350.1Hextension 180mm/d 145mm with bitumen membrane
HL350.211 Roof drains/Attachments/Extensions/HL350/HL350.2extension 130mm/d 145mm with inlet DN40
technical data
| material | PVC |
| dimension | d 145 mm |
| capacity |
| weight | 0,915 [kg] |
| EAN | 9003076703661 |
| installation height | 88 mm |
| grate frame |
| grate | Edelstahl 138 x 138 mm |
| load class | L15/A15 - 1,5 t |
| inlet |
| standards |
pcs.
| unit | 1 [pcs.] |
| weight | 0,915 [kg] |
| height/width/depth | 92/210/210 [mm] |
| volume | 0.0040572 [m3] |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,919 [kg] |
| height/width/depth | 100/210/210 [mm] |
| volume | 0.00441 [m3] |
