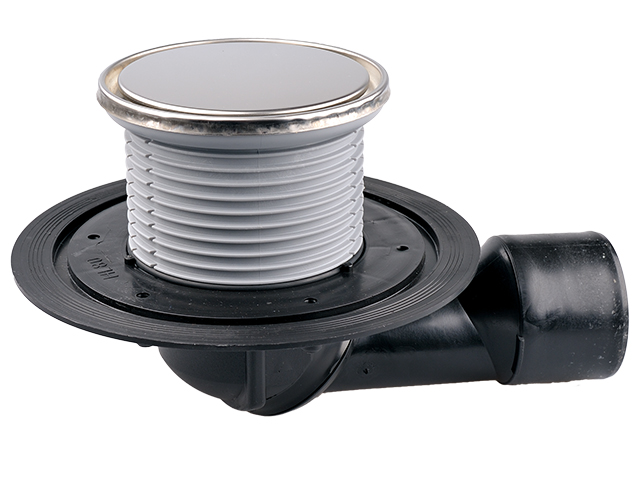

floor drain DN50/75 with ball-joint outlet (for horizontal and vertical use), flange, trap seal, cut-to-size plastic extension 20 - 73 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.
material | PP/PE |
dimension | DN50/75 |
capacity | 0,5 l/s |
weight | 0,633 [kg] |
EAN | 9003076004591 |
installation height | 103 mm |
grate frame | 20-73 mm/d 133 mm |
grate | Edelstahl rund d 112 mm |
load class | K - 300 kg |
inlet |
standards |
unit | 1 [pcs.] |
weight | 0,822 [kg] |
EAN/pack. | 9003076004591 |
height/width/depth | 155/225/295 [mm] |
volume | 0,010288125 [m3] |
