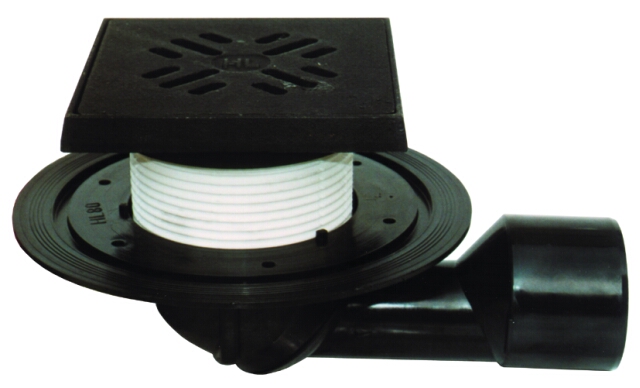

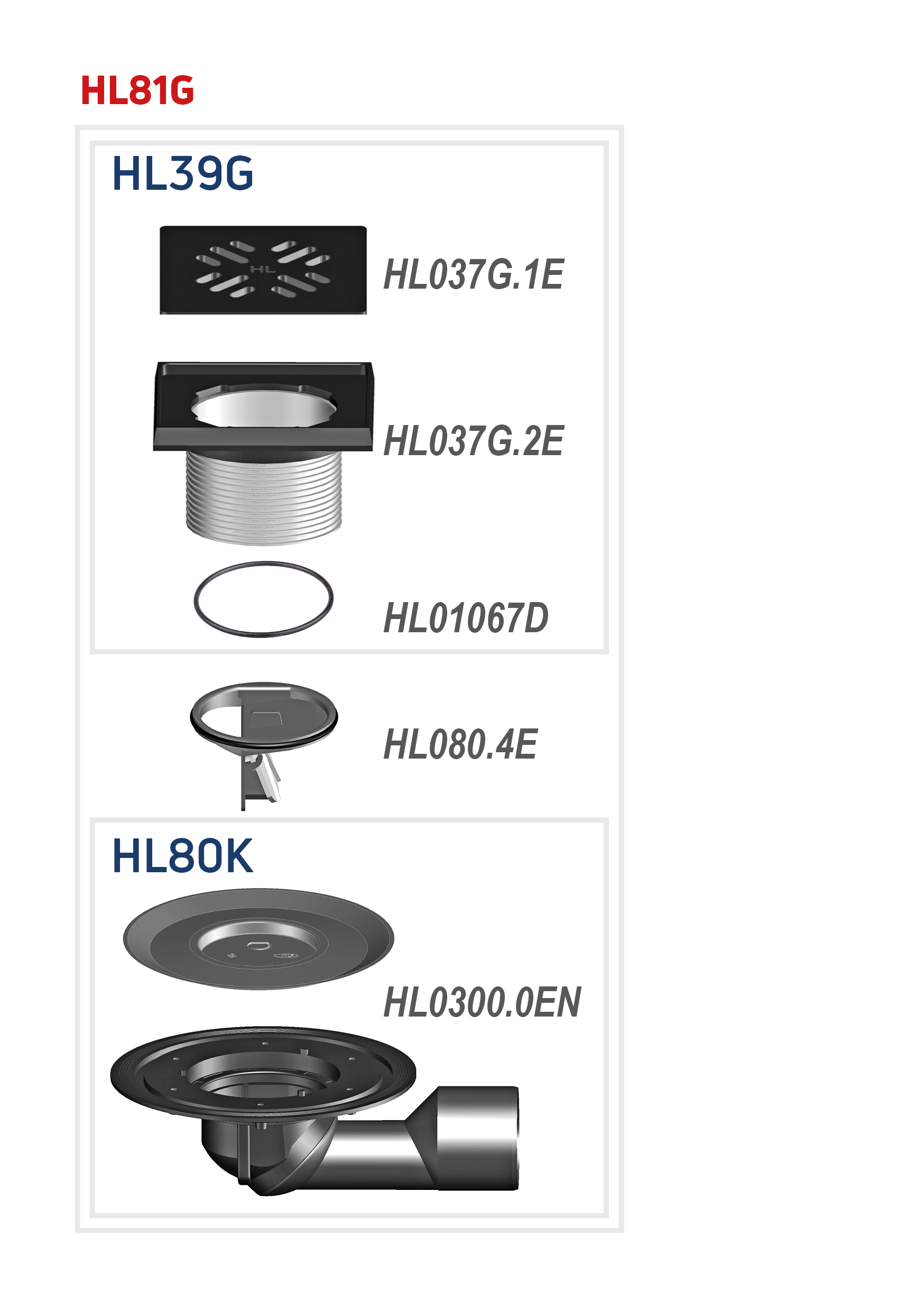

floor drain DN50/75 with ball-joint outlet (for horizontal and vertical use), flange, trap seal, cut-to-size plastic extension 34 - 73 mm, cast iron grate frame 150 x 150 mm and cast iron grate 137 x 137 mm. Comes with lot cover.
| material | PP, PE |
| dimension | DN50/DN75 |
| capacity | 0,50 l/sec |
| weight | 2,4 [kg] |
| EAN | 9003076004614 |
| installation height |
| grate frame |
| grate | GG 137 x 137 mm |
| load class | L15 - 1,5 t |
| inlet |
| standards |
| unit | 1 [pcs.] |
| weight | 2,59 [kg] |
| height/width/depth | 155/225/295 [mm] |
| volume | 0.010288125 [m3] |
