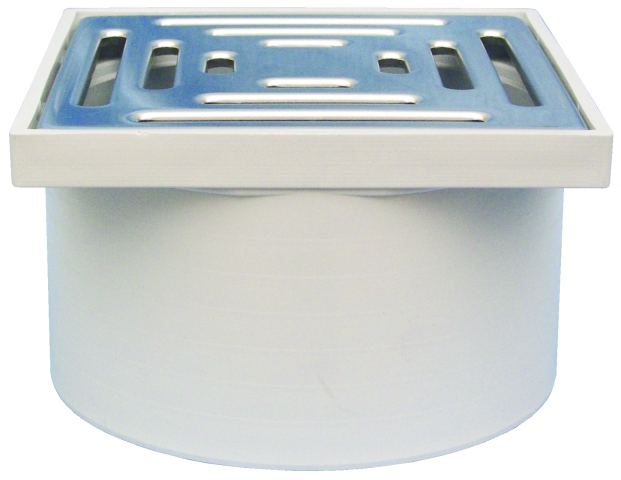

grating d 145mm sleek/147x147mm/138x138mm
grating 90 mm sleek / d 145 mm / 147 x 147 mm with stainless steel grate 138 x 138 mm. Total height 90 mm, frame height 14 mm

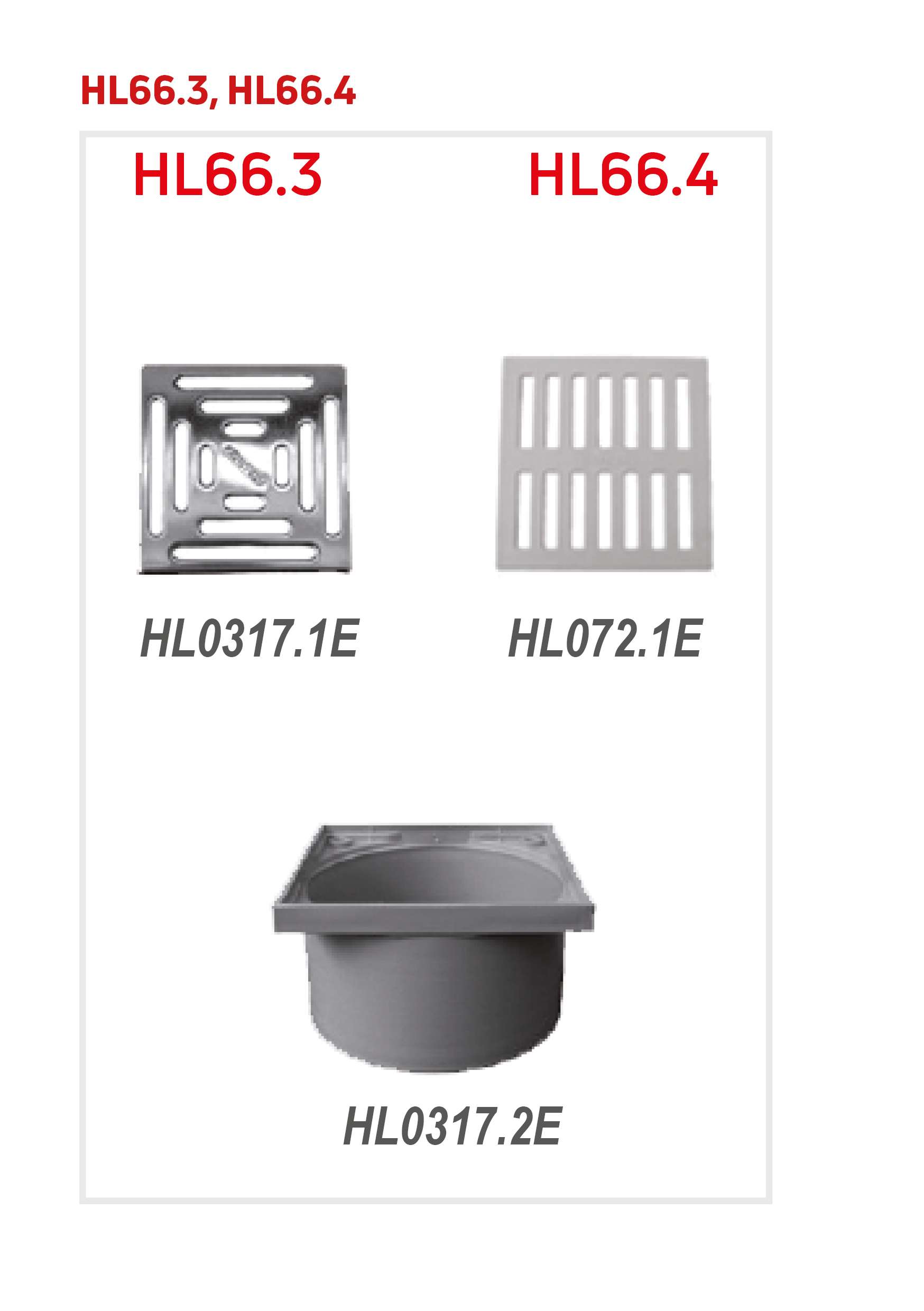

spare parts
HL0317.1E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL0317.1Estainless steel grate 138x138mm
HL0317.2E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL0317.2Egrate frame d 145mm/90mm/147x147mm
attachment
HL35013 Floor drains/Attachments/Extensions/HL350/HL350extension 130mm/d 145mm
HL01058D14 Sealing kits / Extensions/Attachments/Spare parts/Spare Parts Sealing Sets / Riser Elements/HL01058Dtailback gasket for stainless steel flange 220x155mm
HL062B.3E11 Roof drains/Attachments/Spare parts/Spare Parts Roof Drainage/HL062B.3Eadapter
HL16011 Roof drains/Attachments/Drainage elements/HL160/HL160gravel guard d 150mm
HL350.111 Roof drains/Attachments/Extensions/HL350/HL350.1extension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1H13 Floor drains/Attachments/Extensions/HL350/HL350.1Hextension 180mm/d 145mm with bitumen membrane
HL350.211 Roof drains/Attachments/Extensions/HL350/HL350.2extension 130mm/d 145mm with inlet DN40
HL6511 Roof drains/Attachments/Extensions/HL65/HL65extension 300mm/d 125mm with clamping ring
HL062.1E11 Roof drains/Attachments/Spare parts/Spare Parts Roof Drainage/HL062.1Edomed plastic grate
HL17511 Roof drains/Attachments/Leave/Gravel catcher/HL175/HL175domed grate stainless steel
HL6613 Floor drains/Attachments/Gratings/HL66/HL66grating d 145mm sleek stainless steel frame 150x150mm/138x138mm secured
HL66.113 Floor drains/Attachments/Gratings/HL66/HL66.1grating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
HL66.913 Floor drains/Attachments/Gratings/HL66/HL66.9grating d 145mm fluted/148x148mm/138x138mm
HL6713 Floor drains/Attachments/Gratings/HL67/HL67grating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm
HL65H11 Roof drains/Attachments/Extensions/HL65/HL65Hextension 300mm/d 125mm with bitumen membrane
technical data
| material | PP |
| dimension | d 145 mm |
| capacity |
| weight | 0,357 [kg] |
| EAN | 9003076014545 |
| installation height | 90 mm |
| grate frame |
| grate | Edelstahl 138 x 138 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,365 [kg] |
| height/width/depth | 100/160/160 [mm] |
| volume | 0.00256 [m3] |
