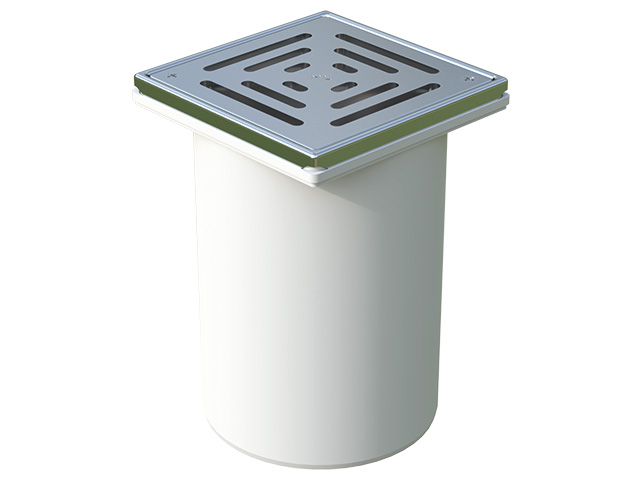

grating d 145mm sleek stainless steel frame 150x150mm/138x138mm secured
grating 205 mm sleek / d 145 mm with stainless steel frame 150x150 mm and secured stainless steel grate 138x138 mm. Total height 203 mm, frame height 15 mm

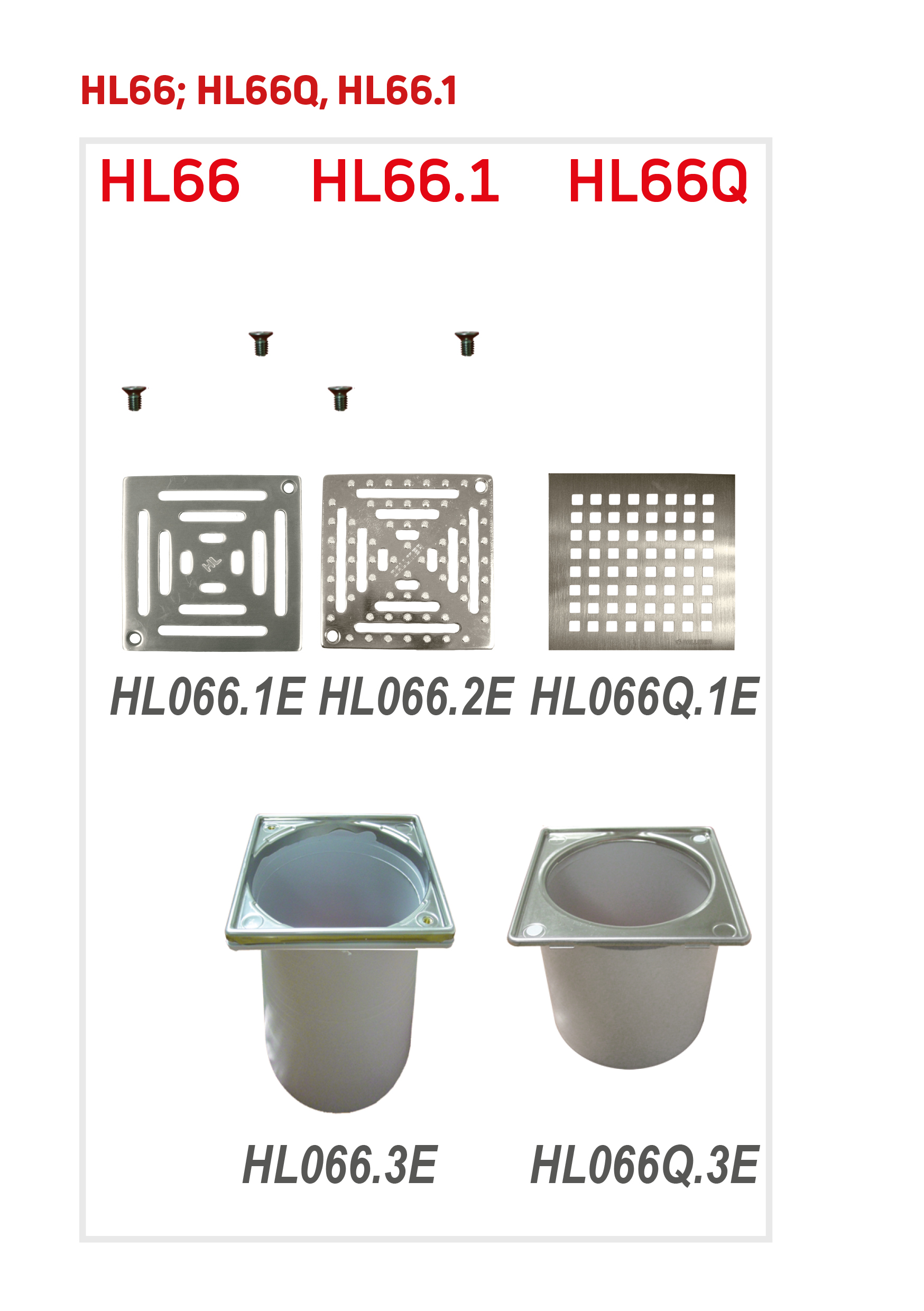

spare parts
HL066.1E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL066.1Estainless steel grate 138x138mm secured
HL066.3E13 Floor drains/Attachments/Spare parts/Spare Parts Floor Drainage/HL066.3Egrate frame d 145mm/205mm/stainless steel frame 150x150mm secured
attachment
HL01058D14 Sealing kits / Extensions/Attachments/Spare parts/Spare Parts Sealing Sets / Riser Elements/HL01058Dtailback gasket for stainless steel flange 220x155mm
HL062B.3E11 Roof drains/Attachments/Spare parts/Spare Parts Roof Drainage/HL062B.3Eadapter
HL16011 Roof drains/Attachments/Drainage elements/HL160/HL160gravel guard d 150mm
HL35013 Floor drains/Attachments/Extensions/HL350/HL350extension 130mm/d 145mm
HL350.111 Roof drains/Attachments/Extensions/HL350/HL350.1extension 180mm/d 145mm with flange and waterproofing kit HL84
HL350.1H13 Floor drains/Attachments/Extensions/HL350/HL350.1Hextension 180mm/d 145mm with bitumen membrane
HL350.211 Roof drains/Attachments/Extensions/HL350/HL350.2extension 130mm/d 145mm with inlet DN40
HL6511 Roof drains/Attachments/Extensions/HL65/HL65extension 300mm/d 125mm with clamping ring
HL062.1E11 Roof drains/Attachments/Spare parts/Spare Parts Roof Drainage/HL062.1Edomed plastic grate
HL17511 Roof drains/Attachments/Leave/Gravel catcher/HL175/HL175domed grate stainless steel
HL66.113 Floor drains/Attachments/Gratings/HL66/HL66.1grating d 145mm sleek/(316) stainless steel frame 150x150mm/138x138mm (316) secured and slip-resistant
HL66.913 Floor drains/Attachments/Gratings/HL66/HL66.9grating d 145mm fluted/148x148mm/138x138mm
HL6713 Floor drains/Attachments/Gratings/HL67/HL67grating round d 145mm sleek/(316) stainless steel frame d 155mm/d 145mm
HL65H11 Roof drains/Attachments/Extensions/HL65/HL65Hextension 300mm/d 125mm with bitumen membrane
HL65P11 Roof drains/Attachments/Extensions/HL65/HL65Pextension 345mm/d 125mm with PVC collar
technical data
| material | PP, Edelstahl V4A |
| dimension | d 145 mm |
| capacity |
| weight | 0,915 [kg] |
| EAN | 9003076700660 |
| installation height | 205 mm |
| grate frame |
| grate | Edelstahl 138 x 138 mm |
| load class | L15/A15 - 1,5 t |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,923 [kg] |
| height/width/depth | 150/150/210 [mm] |
| volume | 0.004725 [m3] |
