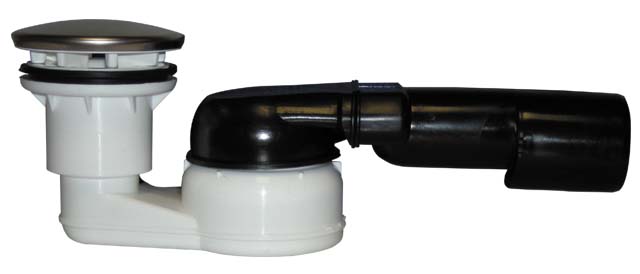

shower trap DN40/50x1 1/2' horizontal with ball-joint and stainless steel-coverplate d 86mm
shower trap DN40/50 x 1 1/2' horizontal for waste holes 1 1/2' with ball-joint and stainless steel-coverplate d 86 mm. Comes with function lot cover / assembling tool.
spare parts
HL01053DProduct overview / Shower trayswaste gasket 78x49mm
HL0514S.1EProduct overview / Shower trayswaste valve core
HL514/S.1Product overview / Shower trays / attachmentscoverplate stainless steel d 86mm
attachment
HL5000Product overview / Shower trays / attachmentsassembling tool
HL515/SProduct overview / Shower trays / attachmentsstand pipe 98x38mm
Alternatives
HL514/SN.0Product overview / Shower trays / productsshower trap DN40/50x1 1/2' horizontal with ball-joint
HL514/SN-80Product overview / Shower trays / productsshower trap DN40/50x80mm horizontal with ball-joint and stainless steel-coverplate d 86mm
HL524Product overview / Shower trays / productsshower trap DN50/40x75mm horizontal with telescopic stand-pipe and ball-joint
technical data
| material | PP/PE |
| dimension | DN40/50 x 6/4" |
| capacity | 0,48 l/s |
| weight | 0,33 [kg] |
| EAN | 9003076004751 |
| installation height | 85 mm |
| grate frame |
| grate | Edelstahlplatte d 86mm |
| load class |
| inlet |
| standards | EN274 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,338 [kg] |
| EAN/pack. | 9003076004751 |
| height/width/depth | 85/105/300 [mm] |
| volume | 0,002677500 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 3,831 [kg] |
| EAN/pack. | 9003076004768 |
| height/width/depth | 320/250/410 [mm] |
| volume | 0,032800000 [m3] |
single use pallet
| unit | 450 [pcs.] |
| weight | 184,4 [kg] |
| EAN/pack. |
| height/width/depth | 1900/800/1200 [mm] |
| volume | 1,824000000 [m3] |
