perfect-drain DN160 vertical with flange, 240x240mm plastic/226x226mm stainless steel with trap seal

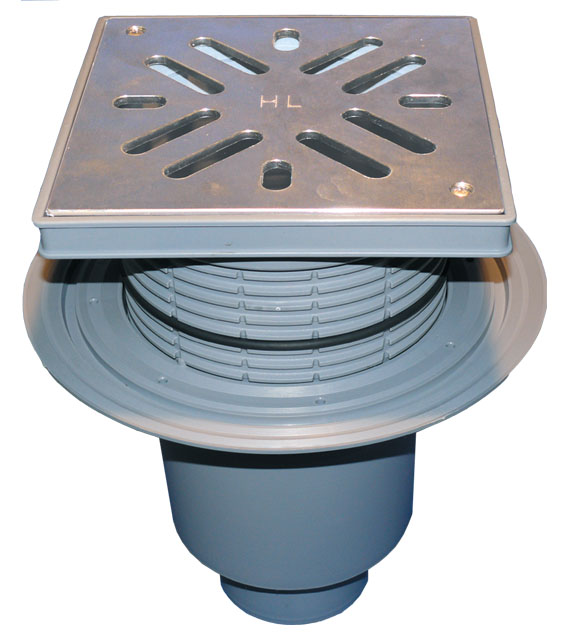

perfect-drain DN160 vertical with flange, cut-to-size plastic grate frame 42 - 130 mm / 240 x 240 mm, secured stainless steel grate 226 x 226 mm, strainer and trap seal
spare parts
HL0605.2E15 Magnum drains/Attachments/Trap inserts/HL0605.2E/HL0605.2Etrap cartridge
HL0606.2E15 Magnum drains/Attachments/Leave/Gravel catcher/HL0606.2E/HL0606.2Estrainer
HL616K/515 Magnum drains/Products/vertical/with flange/HL616K/HL616K/5Perfect-drain body DN160 vertical with flange
HL62215 Magnum drains/Attachments/Gratings/HL622/HL622grating d 195mm/240x240mm/226x226mm stainless steel
HL0605.3E15 Magnum drains/Attachments/Cover/HL0605.3E/HL0605.3Estainless steel grate 226x226mm with adapter
HL0605.5E15 Magnum drains/Attachments/Spare parts/HL0605.5Escrews M6x30mm (2 pcs.)
HL60815 Magnum drains/Attachments/Gratings/HL608/HL608extension 144mm/d 195mm
attachment
HL0605.4E15 Magnum drains/Attachments/Cover/HL0605.4E/HL0605.4Estainless steel grate (316) 226x226mm with adapter
HL0606.3E15 Magnum drains/Attachments/Trap inserts/HL0606.3E/HL0606.3Eflap cartridge
HL19015 Magnum drains/Attachments/Drainage elements/HL190/HL190gravel guard d 195mm
HL19115 Magnum drains/Attachments/Leave/Gravel catcher/HL191/HL191Flat leaf catcher for series Perfekt
HL60915 Magnum drains/Attachments/Heating/HL609/HL609heating kit 36W/230V
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL61814 Sealing kits / Extensions/Products/Extensions/HL618/HL618Extension 130mm/d 195mm with flange
HL19515 Magnum drains/Attachments/Leave/Gravel catcher/HL195/HL195domed plastic grate Perfekt-series
HL618H14 Sealing kits / Extensions/Products/Extensions/HL618/HL618Hextension 130mm/d 195mm with bitumen membrane
HL62014 Sealing kits / Extensions/Products/Extensions/HL620/HL620extension 105mm/d 195mm
Alternatives
HL616HSW/515 Magnum drains/Products/vertical/with flange/Bitumen membrane/HL616HSW/HL616HSW/5perfect-drain DN160 vertical with bitumen membrane, 240x240mm plastic/226x226mm stainless steel with trap seal
HL616S/515 Magnum drains/Products/vertical/with flange/HL616S/HL616S/5perfect-drain DN160 vertical with flange, 240x240mm plastic/226x226mm stainless steel with frost-proof flap seal
technical data
| material | PP |
| dimension | DN160 |
| capacity | 2,1 l/sec |
| weight | 3,16 [kg] |
| EAN | 9003076011421 |
| installation height |
| grate frame |
| grate | Edelstahl 226 x 226 mm |
| load class | L15 - 1,5 t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 4 [kg] |
| height/width/depth | 355/386/386 [mm] |
| volume | 0.05289358 [m3] |
single use pallet
| unit | 24 [pcs.] |
| weight | 116 [kg] |
| height/width/depth | 1650/800/1200 [mm] |
| volume | 1.584 [m3] |
downloads
HL616S_pr
HL616S_B
HL616S_gr
txt
66.H7 42 Großer Bodenablauf aus Polypropylen (GroßA PP) Modell "Perfekt" zweiteilig mit Dichtflansch (Dichtfl.) Wasser-Geruchsverschluss (Wa.G), Abgang senkrecht (senkr.) DN160-110, ÖNORM EN 124, Kunststoffrahmen (KstR) Einlaufrost 226x226 mm, Belastungsklasse L15 mit Bauschutz. Im Positionsstichwort ist die Ausführung des Rostes aus Guss, Kunststoff (Kunst.) oder NIRO angegeben.
F. GroßA PP Perfekt Dichtfl.Wa.G senkr.DN160 KstR NIRO L15 (Stk)
Z.B. HL Hutterer & Lechner Großablauf PERFEKT mit Dichtflansch und Kunststoffrahmen, zweiteilig HL616SW/5 oder Gleichwertiges.
