floor drain DN40/50 horizontal with CeraDrain polymer concrete collar, grating KLICK-KLACK 121x121mm/115x115mm and trap seal. Comes with supporting frame/cover and lot cover.

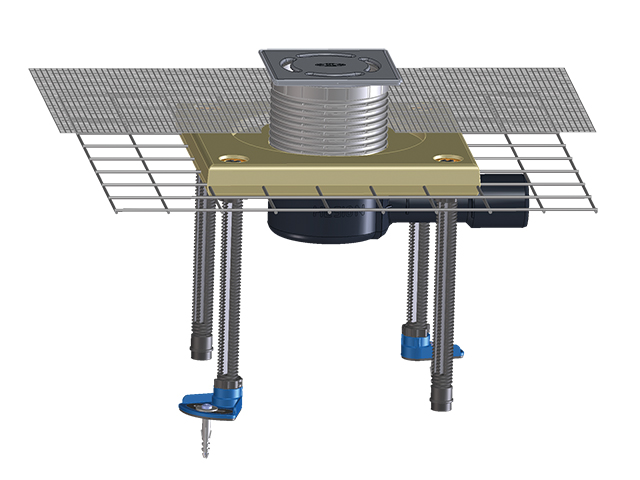

floor drain DN40/50 with horizontal outlet, CeraDrain collar, cut-to-size plastic grate frame 0 - 70 mm with stainless steel (316) frame 121 x 121 mm (system KLICK-KLACK), stainless steel grate 115 x 115 mm and trap seal. Comes with supporting frame/cover

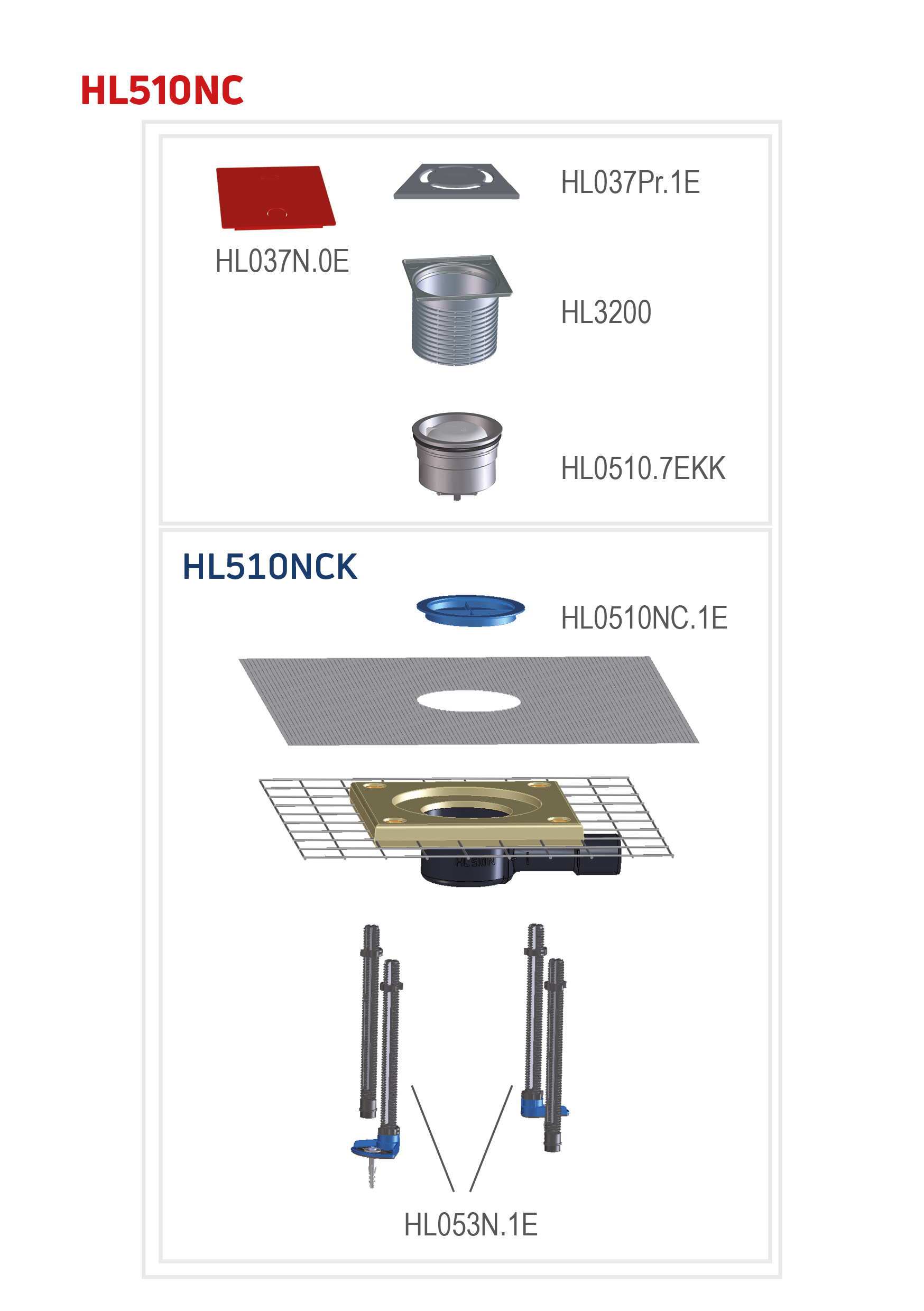

spare parts
HL3000.1Product overview / Floor drains / attachmentsgrating d 110mm/stainless steel frame 121x121mm/115x115mm with trap seal. System "KLICK-KLACK". Comes with supporting frame/cover.
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL0510.7EKKProduct overview / Floor drainstrap seal cartridge
HL01086DProduct overview / Floor drainsO-ring 88x5mm
HL3200Product overview / Floor drains / attachmentsgrate frame d 110/100mm/stainless steel frame 121x121mm. System "KLICK-KLACK". Comes with supporting frame/cover.
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037N.0EProduct overview / Floor drainssupporting frame/cover 123x123mm
HL510NCKProduct overview / Barriere-free showersfloor drain body DN40/50 with horizontal outlet and CeraDrain collar.
HL0510NC.1EProduct overview / Barriere-free showersglass fibre mat CeraDrain
HL053N.1EProduct overview / Barriere-free showersAdjustment set (screw pads - 4 pcs.set) - NEW
attachment
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL3110Product overview / Floor drains / attachmentsstainless steel grate (316) 115x115mm
HL3120Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Quadra"
HL3121Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Seine"
HL3122Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Loire"
HL3123Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Orinoko"
HL3124Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Nil"
HL3125Product overview / Floor drains / attachmentsstainless steel grate 115x115mm "Yukon"
HL3127Product overview / Floor drains / attachmentsStainless steel grate 115x115mm 'Primus Design'
technical data
| material | Polymerbeton/PP/PE/Edelstahl |
| dimension | DN40/50 |
| capacity | 0,55 l/s |
| weight | 4,35 [kg] |
| EAN | 9003076021338 |
| installation height | 95 mm |
| grate frame | 0-70 mm/121 x 121 mm V2A |
| grate | Edelstahl 115 x 115 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 5,3 [kg] |
| EAN/pack. | 9003076021338 |
| height/width/depth | 165/480/480 [mm] |
| volume | 0,038016000 [m3] |
