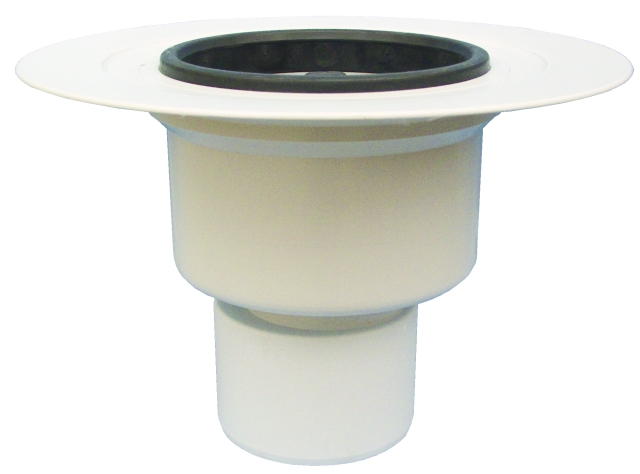

floor drain body DN50/75/110 vertical with flange and trap seal. Comes with lot cover.
material | PP |
dimension | DN50/75/110 |
capacity | 1,8 l/s |
weight | 0,796 [kg] |
EAN | 9003076009022 |
installation height | 200 mm |
grate frame |
grate |
load class |
inlet |
standards |
unit | 1 [pcs.] |
weight | 0,99 [kg] |
EAN/pack. | 9003076009022 |
height/width/depth | 185/305/305 [mm] |
volume | 0,017209625 [m3] |
unit | 84 [pcs.] |
weight | 94 [kg] |
EAN/pack. |
height/width/depth | 1900/800/1200 [mm] |
volume | 1,824000000 [m3] |
