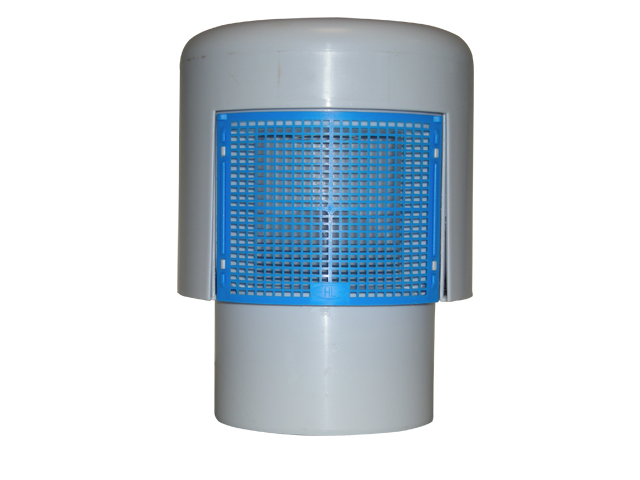

air admittance valve DN110 with integrated double insulation
air admittance valve DN110 for internal venting of soil and waste systems according to EN12380-1 with removable insect screen (easy cleaning), massive rubber membrane and integrated double insulation. Supervisory approval Z-53.5-460.

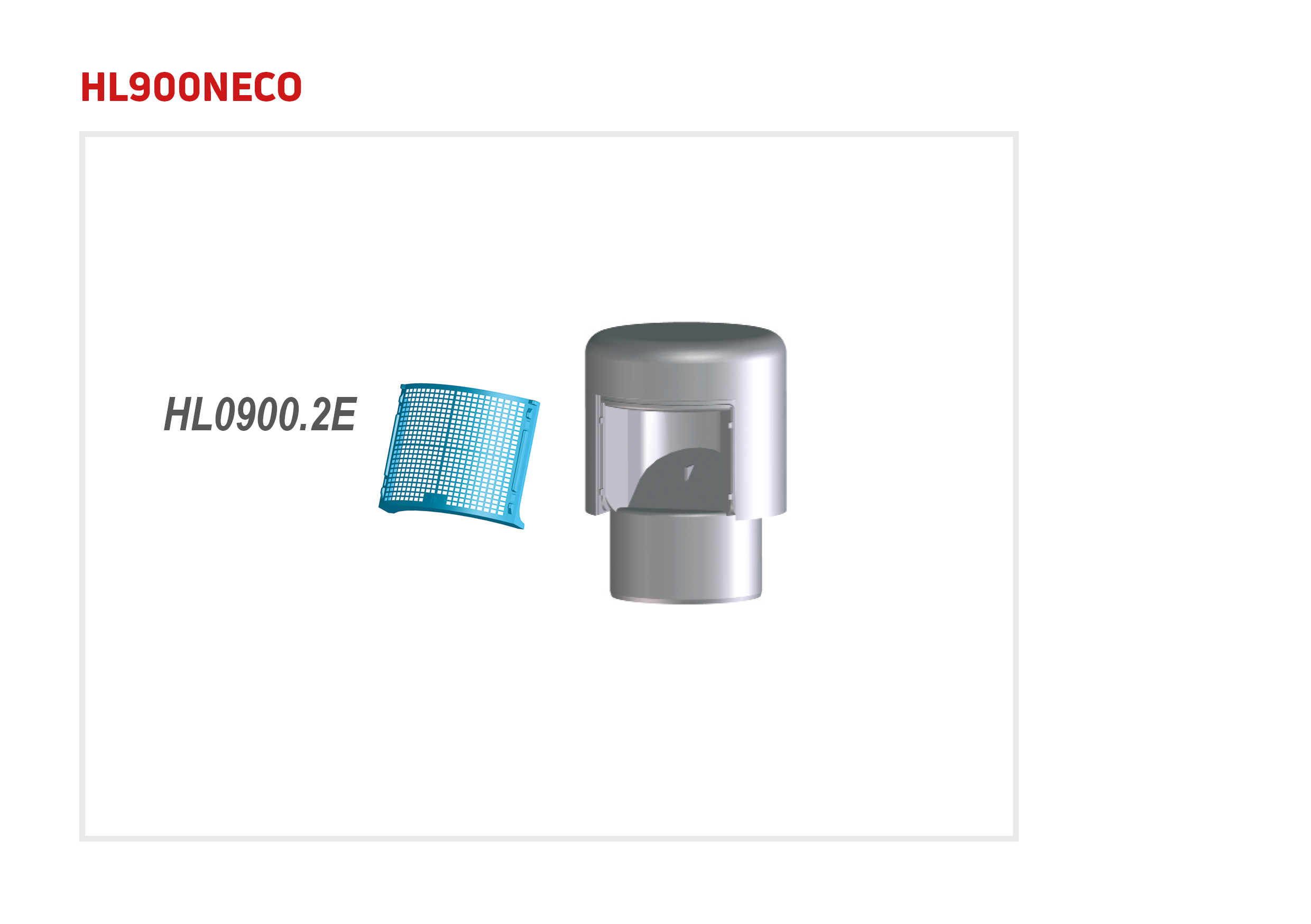

spare parts
attachment
technical data
| material | PP |
| dimension | DN110 |
| capacity | 37 l/s |
| weight | 0,46 [kg] |
| EAN | 9003076016839 |
| installation height | 130 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN12380-A1 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,463 [kg] |
| EAN/pack. | 9003076016839 |
| height/width/depth | 150/150/200 [mm] |
| volume | 0,004500000 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 5,29 [kg] |
| EAN/pack. | 9003076016846 |
| height/width/depth | 338/387/592 [mm] |
| volume | 0,077437152 [m3] |
single use pallet
| unit | 200 [pcs.] |
| weight | 116 [kg] |
| EAN/pack. |
| height/width/depth | 2000/800/1300 [mm] |
| volume | 2,080000000 [m3] |
