CeraDrain

"Thin bed" waterproofing matches modern demands - optical (low construction heights e.g. for tiled showers) on the one hand, sanitary on the other (baths, hospitals, kitchen, bathrooms in fitness centers, saunas, etc.); but also structural demands, regulations (DIN 18024) and safety aspects. The principle of using screeded epoxy resin or the tile adhesive itself to form an impermeable layer just beneath the finished floor needs modern and reliable facilities of integrating drains. This is why CeraDrain ist the ultimate solution. The polymer concrete collar lies flush with the screed - heigth adjustable levelling legs provide millimetre-accurate adjustment - and the steel mesh limits differential movement between the screed and the drain. A glass fibre mat, bonded to the top of the collar acts as reinforcement at the critical point between the screed and the collar. The special membranes and waterproof tile adhesive used in these installations bond easily and secure to this surface. HL offers multifuncional CeraDrain raising pieces (HL85NC, HL360) as well as complete CeraDrain floor drain (HL80.1C(R)) and balcony or terrace drain sets (HL80C(R)).

Installation example

1.)

2.)

3.)

4.)

5.)

6.)

7.)

8.)

9.)

10.)

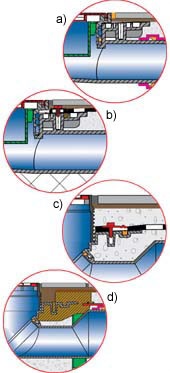

Comparison

a) Installation without waterproofing
b) Installation with waterproofing kit HL83 series
c) Installation with bitumen membrane (HL80H) or PVC
d) Installation with CeraDrain
versions b), c) and d) redundantise the usual waterproofing of the seam between tile and grate frame with silicone (a common reason for leakage) .

Installation example

1.)

2.)

3.)

4.)

5.)

6.)

7.)

8.)
