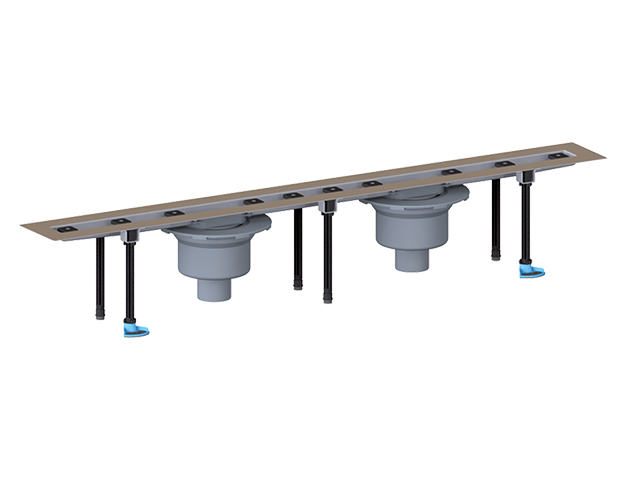

Stainless steel shower gutter to be used in the surface, 2 vertical drain DN50/75, fixing material and protection, without cover, length incl. flange 1700mm.
Stainless steel shower gutter for use in the surface, without cover. Body of gutter with sanded flange for connection to hydroinsulation, 2x PP drain DN50/75 with vertical outlet. Removable sifon for easy cleaning. Flow capacity 1,4 l/sec, 6 pcs. adjustable pads, with rubber endings to deaden sound, protection plate, length including flange 1700mm.

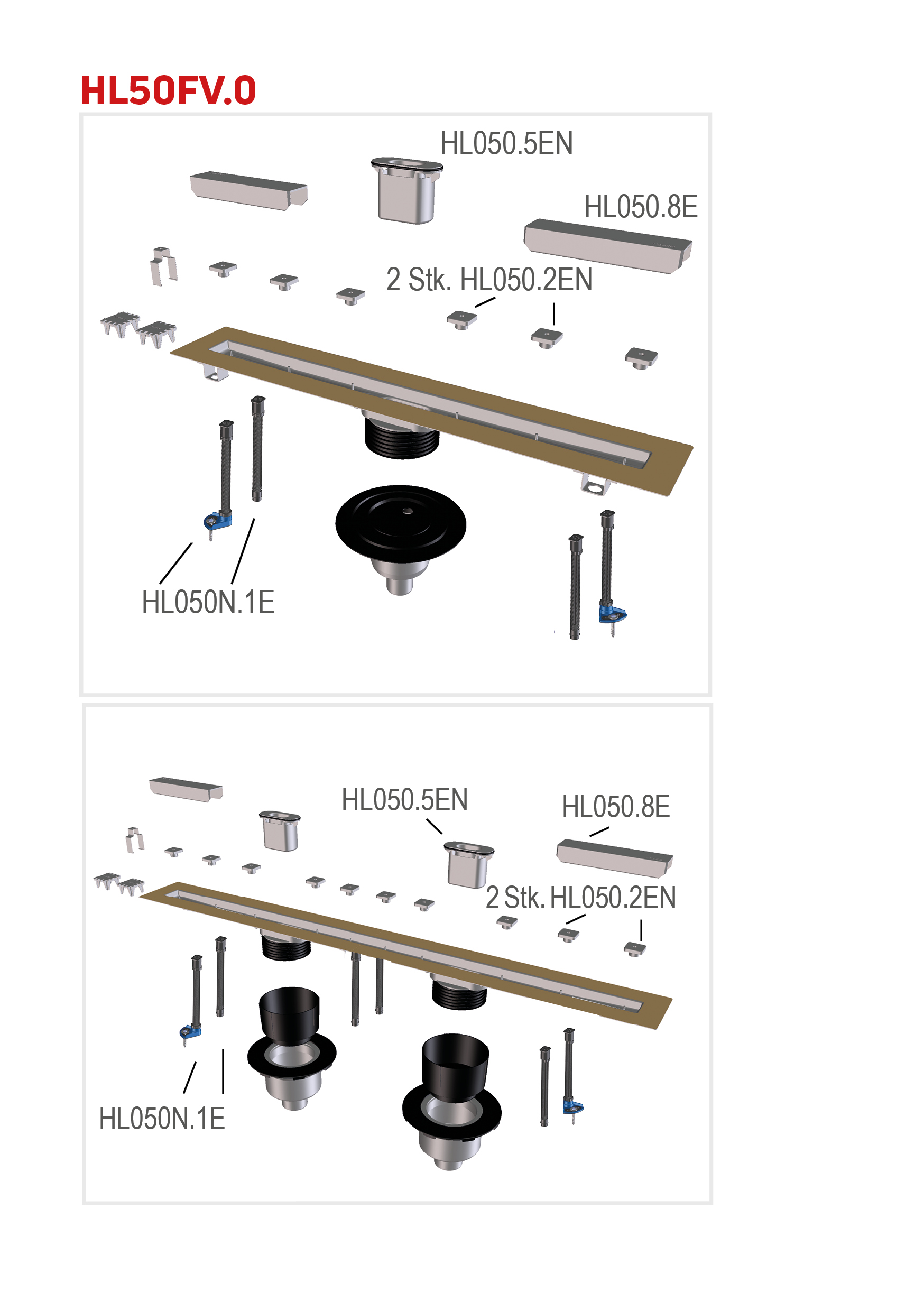

spare parts
HL050.2ENProduct overview / Barriere-free showersAdjustment screws (2 pcs.)
HL050.5ENProduct overview / Barriere-free showersSiphon cartridge NEW
HL050.8EProduct overview / Barriere-free showersEdge guide for tiles
HL050N.1EProduct overview / Barriere-free showersAdjustment set (screw pads - 2 pcs.set) - NEW
attachment
HL050.3ENProduct overview / Barriere-free showersAdjustment screws long (2 pcs.)
HL050D/170Product overview / Barriere-free showers / attachmentsStainless steel cover 'Design', fitting to gutter length 1700mm
HL050I/170Product overview / Barriere-free showers / attachmentsStainless steel cover 'Individual', fitting to gutter length 1700mm
HL050S/170Product overview / Barriere-free showersStainless steel cover 'Standard', fitting to gutter length 1700mm
technical data
| material | Edelstahl, PP |
| dimension | DN50/75 |
| capacity | 1,40 l/s |
| weight | 8,9 [kg] |
| EAN | 9003076038015 |
| installation height |
| grate frame |
| grate |
| load class | K3 - 300kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 9,4 [kg] |
| EAN/pack. | 9003076038015 |
| height/width/depth | 185/185/1450 [mm] |
| volume | 0,049626250 [m3] |
