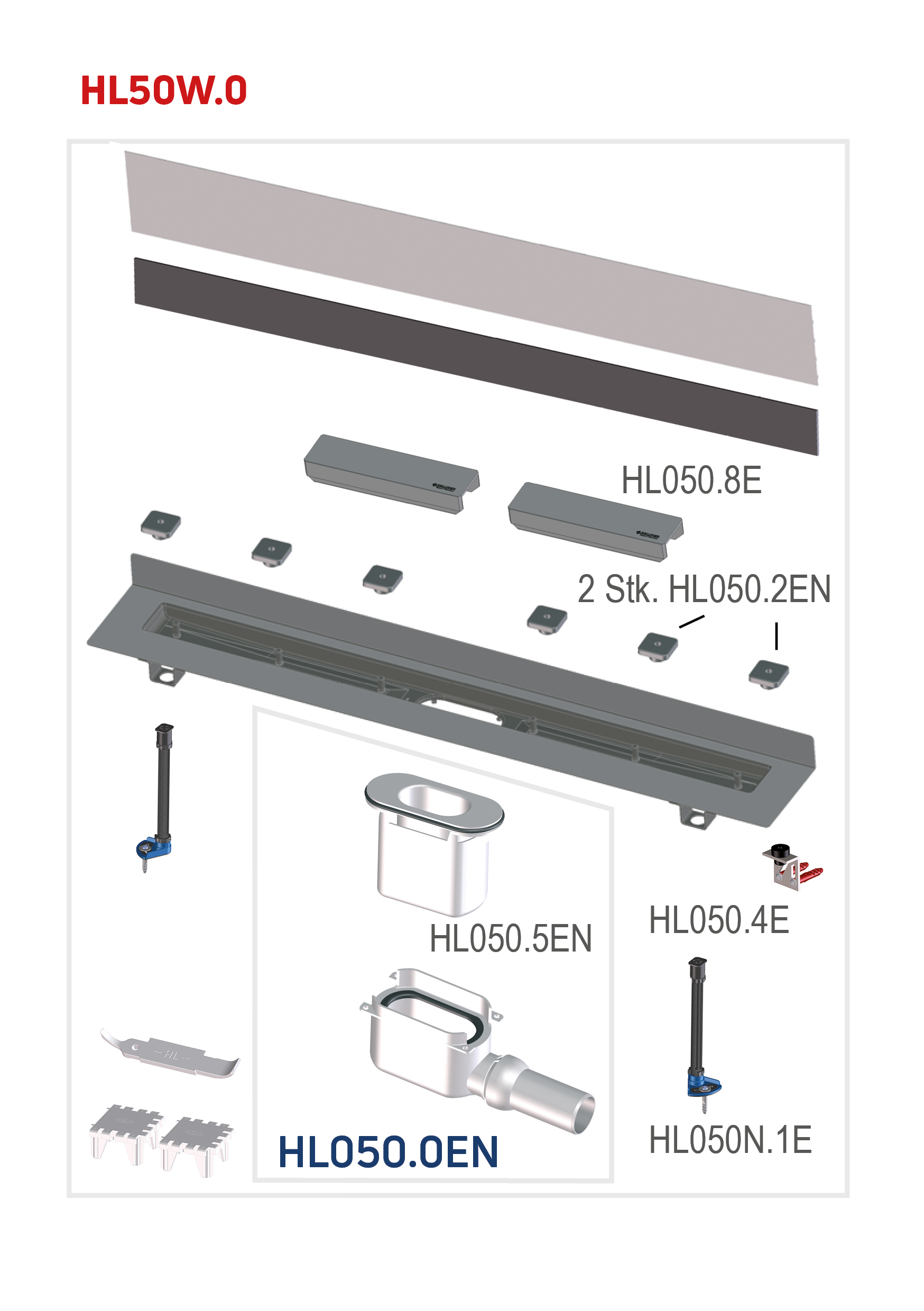

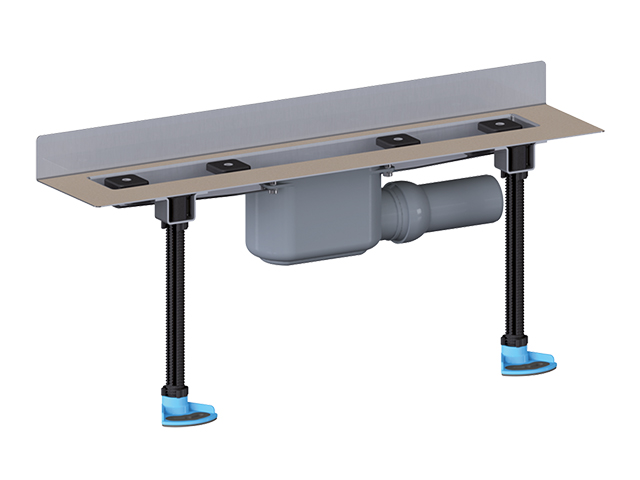

Stainless steel shower gutter to be connected to the wall, delivery without cover. Body of gutter with sanded flange and egde for connection to hydroinsulation, PP drain with ball joint DN50 with horizontal outlet.Removable sifon for easy cleaning. Flow capacity 0,8l/sec. Included: 2 pcs. adjustable pads, with rubber endings to deaden sound, 2 pcs. fixing angles with screws, dowels and sound protection tape, butyle insulation tape for insulation to the wall. Protection plate. Length including flange 600mm.
material | Edelstahl; PP |
dimension | DN50 |
capacity | 0,80 l/s |
weight | 2,409 [kg] |
EAN | 9003076024759 |
installation height | mind. 110mm |
grate frame |
grate |
load class | K3 - 300kg |
inlet |
standards |
unit | 1 [pcs.] |
weight | 2,854 [kg] |
EAN/pack. | 9003076024759 |
height/width/depth | 185/185/1450 [mm] |
volume | 0,049626250 [m3] |
