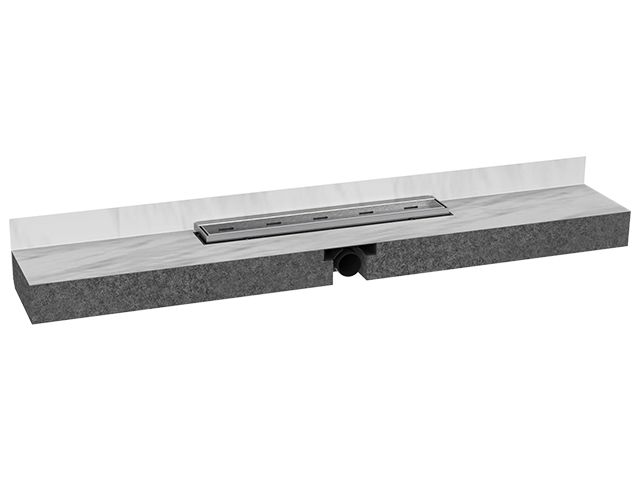

Shower channel, integrated in an EPS-installation block with stainless steel frame and cover. Waterproof, fleece-laminated surface with 3% incline. For direct tiling. Length individually adjustable by cutting or elongating. For installation close to the wall. With Prmus blue-trap, no stench even without water! Including stainless steel cover and lot cover "Individual".
material | PP/ABS/EPS-40/Edelstahl V2A |
dimension | DN50 |
capacity | 0,60 l/s |
weight | 2,59 [kg] |
EAN | 9003076051588 |
installation height | 75 mm |
grate frame | 13 mm Rahmen-/Belagshöhe |
grate | Edelstahl V2A 486 x 56 mm |
load class | K3 - 300 kg |
inlet |
standards | EN1253 |
unit | 1 [pcs.] |
weight | 3,205 [kg] |
EAN/pack. | 9003076051588 |
height/width/depth | 100/200/1210 [mm] |
volume | 0,024200000 [m3] |
unit | 68 [pcs.] |
weight | 231 [kg] |
EAN/pack. |
height/width/depth | 1950/800/1200 [mm] |
volume | 1,872000000 [m3] |
