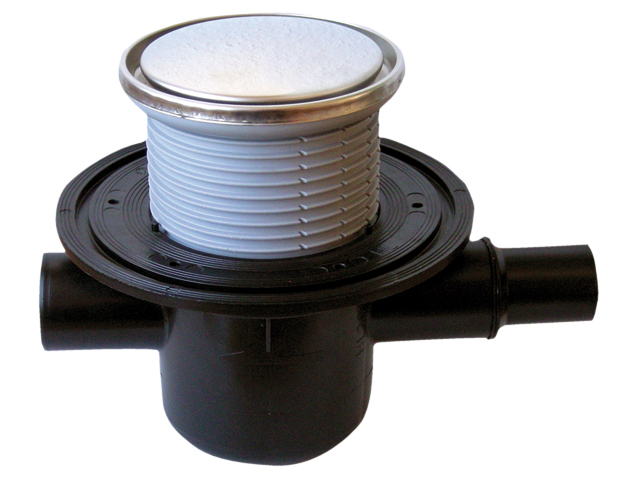

floor drain DN50 horizontal with flange, trap seal with non-return valve, inlet DN40/50, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 131 mm and stainless steel plate d 112 mm. Comes with lot cover.
material | PE |
dimension | DN50 |
capacity | 0,5 l/sec |
weight | 0,723 [kg] |
EAN | 9003076000340 |
installation height | 136 mm |
grate frame | 20-75mm/d 131mm |
grate | Edelstahl rund d 112mm |
load class | K - 300 kg |
inlet | DN50/40 |
standards |
unit | 1 [pcs.] |
weight | 0,91 [kg] |
EAN/pack. | 9003076000340 |
height/width/depth | 155/225/295 [mm] |
volume | 0,010288125 [m3] |
