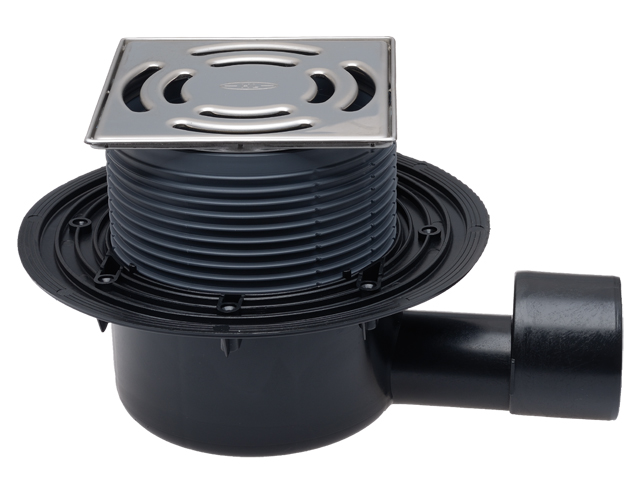

Floor drain DN 50/75 horizontal with siphon PRIMUS 145x145 mm Klick-Klack/ 138x138mm
Floor drain DN 50/75 horizontal with flange, siphon PRIMUS, works also without water, 8-80 mm grating (may be cut off) with stainless steel frame 145x145mm, Klick-Klack, stainless steel grate 138x138mm, lot cover for body and top

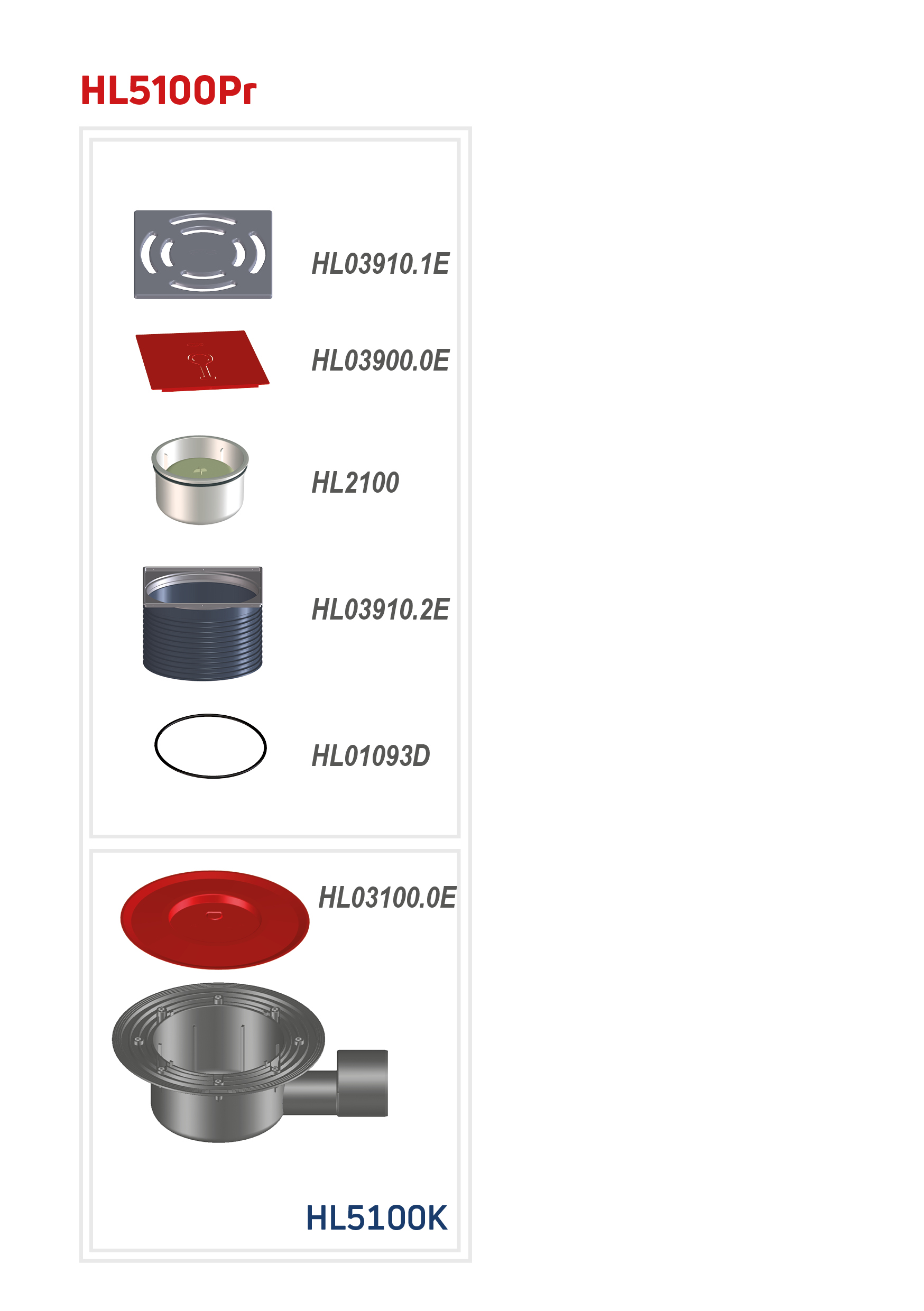

spare parts
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL01093DProduct overview / Floor drainsO-ring 125x4
HL3910PrProduct overview / Floor drains / attachmentsGrating d 146 mm/ Stainless steel frame 145x145 mm/ Stainless steel grate 138x138 mm, System Klick-Klack, siphon PRIMUS
HL03910.1EProduct overview / Floor drains / attachmentsGrate stainless steel 138x138mm
HL03910.2EProduct overview / Floor drainsGrating d 146mm / stainless steel frame 145x145mm incl. O-ring, system Klick-Klack
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL01093DProduct overview / Floor drainsO-ring 125x4
HL5100KProduct overview / Floor drains / horizontal / flangeFloor drain body DN50/75 horizontal
attachment
HL03910.3EProduct overview / Floor drainsGrate stainless steel 138x138 mm
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL0540IProduct overview / Barriere-free showers / attachmentsStainless steel grate with tile hollow
HL066C.1EProduct overview / Floor drainsStainless steel grate "Cut" 138mm x 138mm
HL066Q.1EProduct overview / Floor drainsstainless steel grate "Quadra" 138x138mm
HL3928Product overview / Floor drains / attachmentsExtension "Hamam"d 146mm, stainless steel brass plated frame and grate 145x145mm / 138x138mm, "Klick-Klack"
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
HL6200Product overview / Barriere-free showers / attachmentsSound protection pad 500x500mm
Alternatives
extensions
HL3400Product overview / Sealing kits / Extensions / extensionsElongation element d 146 mm/ 200 mm incl. O-ring
HL8500Product overview / Sealing kits / Extensions / extensionsElongation element 200 mm/ d 146 mm with flange and O-ring
HL8500HProduct overview / Sealing kits / Extensions / extensionsExtension with bitumen flange for HL3100T and 5100T series
Waterproofing Kits
HL8300Product overview / Sealing kits / Extensions / waterproofing kitsSealing set with EPDM-collar 500x500 mm
HL8300.0Product overview / Sealing kits / Extensions / waterproofing kitsSealing set with clamp ring stainless steel
HL8300.HProduct overview / Sealing kits / Extensions / waterproofing kitsSealing set with bitumen collar 500x500 mm
HL8300.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
HL8300.PProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with solid PP flange d 350 mm
HL8300.PPProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with solid PVC flange d 350 mm
technical data
| material | PE/PP/Edelstahl |
| dimension | DN50/75 |
| capacity | 0,8 l/s |
| weight | 1,069 [kg] |
| EAN | 9003076025459 |
| installation height | 97 mm |
| grate frame | 8-80 mm/145 x145 mm |
| grate | Edelstahl 138 x138 mm |
| load class | K3 - 300kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 1,396 [kg] |
| EAN/pack. | 9003076025459 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
single use pallet
| unit | 72 [pcs.] |
| weight | 111 [kg] |
| EAN/pack. |
| height/width/depth | 2050/800/1200 [mm] |
| volume | 1,968000000 [m3] |
