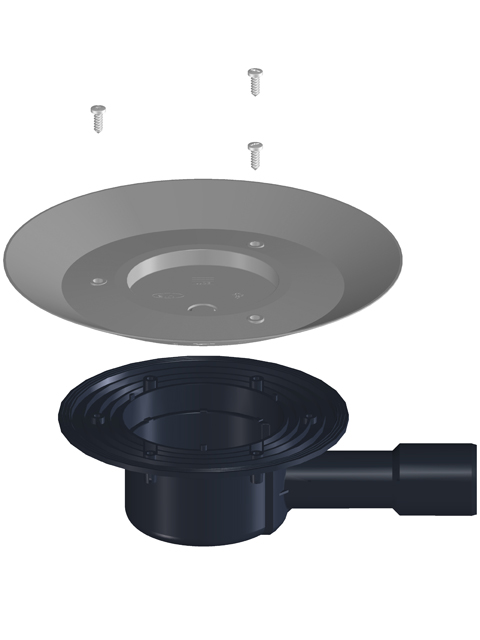

Floor drain body DN40/50 horizontal with deep, pre-installed lot cover
Floor drain body DN40/50 horizontal with flange. Deep, pre-installed lot cover included.
spare parts
attachment
HL3020Product overview / Floor drains / attachmentsExtension with tilable frame d 110mm, stainless steel frame 132x132mm / 112x112mm
HL0510.7EKKProduct overview / Floor drainstrap seal cartridge
HL090.4EKKProduct overview / Balcony and terraceflap cartridge
HL2000KKProduct overview / Floor drains / attachmentstrap seal PRIMUS
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85N-3020Product overview / Sealing kits / Extensions / extensionsExtension with flange and O-ring and deep, pre-installed lot cover, fitting to HL3020 series.
used with
HL510N-3020Product overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with sifon cartridge and extension with tilable frame 132x132mm / 112x112mm
HL510NPr-3020Product overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with sifon cartridge Primus and extension with tilable frame 132x132mm / 112x112mm
technical data
| material | PE/ABS/Edelstahl |
| dimension | DN40/50 |
| capacity |
| weight | 0,424 [kg] |
| EAN | 9003076034451 |
| installation height | 111 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 0,72 [kg] |
| EAN/pack. | 9003076034451 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
single use pallet
| unit | 72 [pcs.] |
| weight | 61,84 [kg] |
| EAN/pack. |
| height/width/depth | 1900/800/1200 [mm] |
| volume | 1,824000000 [m3] |
