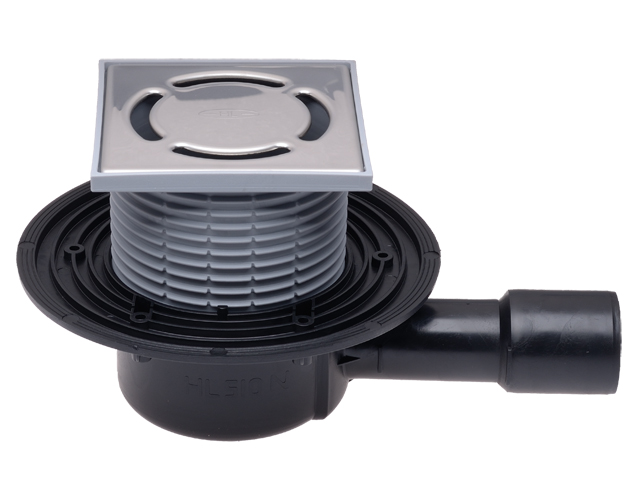

floor drain DN40/50 horizontal with trap seal PRIMUS, 123x123mm/115x115mm
floor drain DN40/50 horizontal with flange, trap seal PRIMUS, cut-to-size grate frame 12 - 70 mm / 123 x 123 mm and stainless steel grate 115 x 115 mm. Comes with lot cover.

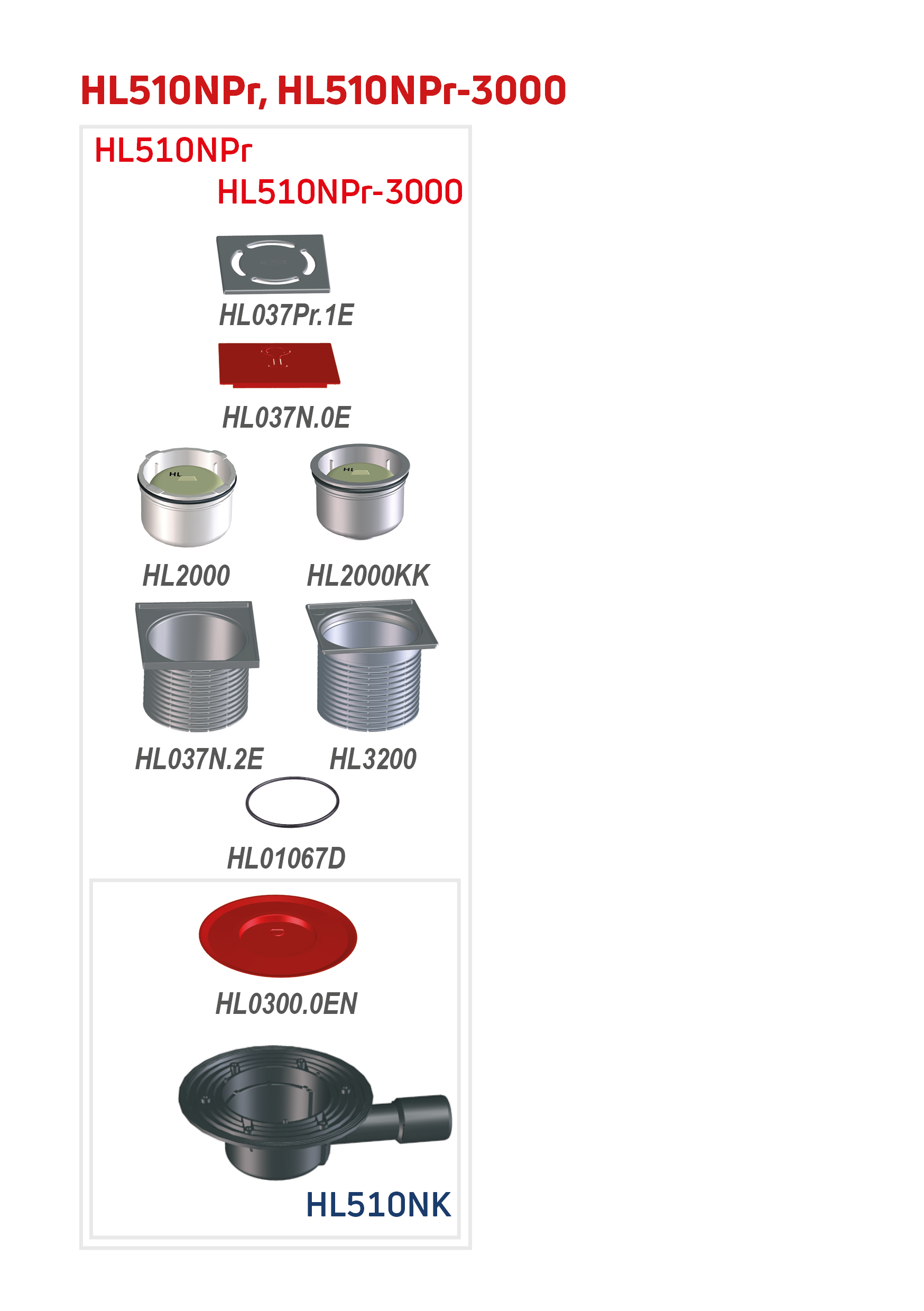

spare parts
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL37NPrProduct overview / Floor drains / attachmentsgrating d 110mm/123x123mm/115x115mm with trap seal PRIMUS. Comes with lot cover
HL037N.2EProduct overview / Floor drainsgrate frame d 110mm/90mm/123x123mm incl. O-ring
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL037N.0EProduct overview / Floor drainssupporting frame/cover 123x123mm
HL037Pr.1EProduct overview / Floor drainsStainless steel grate 115x115mm
HL2000Product overview / Floor drains / attachmentstrap seal PRIMUS
HL01067DProduct overview / Floor drainsO-ring 92x4mm
HL510NKProduct overview / Floor drains / horizontal / flangefloor drain body DN40/50 horizontal
attachment
HL0510.7EProduct overview / Floor drainstrap seal cartridge
HL3127Product overview / Floor drains / attachmentsStainless steel grate (V4A) 115x115mm 'Primus Design'
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL6200Product overview / Barriere-free showers / attachmentsSound protection pad 500x500mm
HL82Product overview / Balcony and terrace / attachmentsheating kit 18W/230V
Alternatives
HL510NProduct overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal 123x123mm/115x115mm
HL510NPrGProduct overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal with trap seal PRIMUS, 150x150mm/137x137mm cast iron
HL510NPrRProduct overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal with trap seal PRIMUS, round d 133mm/d 112mm
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85NProduct overview / Sealing kits / Extensions / extensionsextension with flange incl. O-ring
HL85NCProduct overview / Sealing kits / Extensions / extensionsextension d 110mm CeraDrain with polymer concrete collar incl. O-ring
HL85NHProduct overview / Sealing kits / Extensions / extensionsextension incl. O-ring with bitumen membrane
Waterproofing Kits
HL83Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar 400x400mm
HL83.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit
HL83.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 400mm
HL83.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
HL83.PProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with flange PVC d 287mm
technical data
| material | PE/PP/Edelstahl |
| dimension | DN40/50 |
| capacity | 0,50 l/s |
| weight | 0,747 [kg] |
| EAN | 9003076004737 |
| installation height | 93 mm |
| grate frame | 12-70 mm/123 x 123 mm |
| grate | Edelstahl 115 x 115 mm |
| load class | K - 300 kg |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 0,936 [kg] |
| EAN/pack. | 9003076004737 |
| height/width/depth | 155/225/295 [mm] |
| volume | 0,010288125 [m3] |
single use pallet
| unit | 143 [pcs.] |
| weight | 144 [kg] |
| EAN/pack. |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1,872000000 [m3] |
