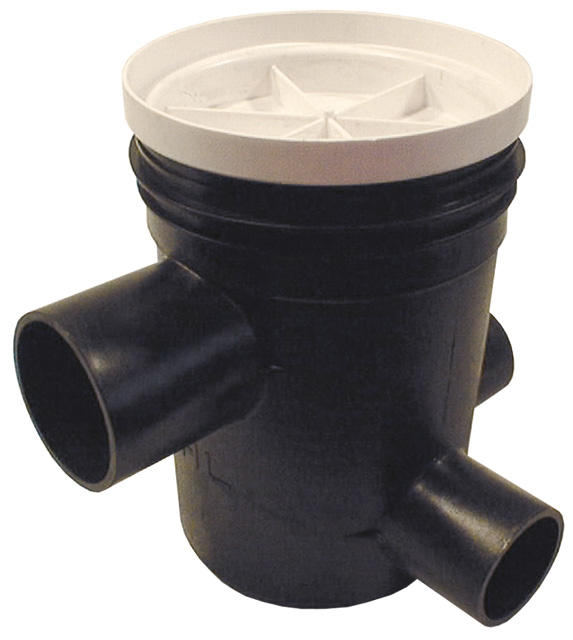

floor drain body DN50 with 3 inlets DN40
floor drain body DN50 with 3 inlets DN40. Comes with lot cover.
attachment
HL306-110Product overview / Floor drains / attachmentsstainless steel plug d 110mm
HL308Product overview / Floor drains / attachmentsframe plate 123x123mm
HL306-128Product overview / Floor drains / attachmentsstainless steel plug d 128mm
HL308Product overview / Floor drains / attachmentsframe plate 123x123mm
HL307Product overview / Floor drains / attachmentstrap seal assembly d 110mm with stainless steel grate d 85mm and non-return valve
HL308Product overview / Floor drains / attachmentsframe plate 123x123mm
HL307.0Product overview / Floor drains / attachmentstrap seal assembly d 110mm with stainless steel grate d 85mm
HL308Product overview / Floor drains / attachmentsframe plate 123x123mm
HL308Product overview / Floor drains / attachmentsframe plate 123x123mm
technical data
| material | PE |
| dimension | DN50 |
| capacity | 0,5 l/sec |
| weight | 0,23 [kg] |
| EAN | 9003076703036 |
| installation height | 165 mm |
| grate frame |
| grate |
| load class |
| inlet | 3 x DN40 |
| standards |
carton
| unit | 10 [pcs.] |
| weight | 2,778 [kg] |
| EAN/pack. |
| height/width/depth | 360/300/410 [mm] |
| volume | 0,044280000 [m3] |
