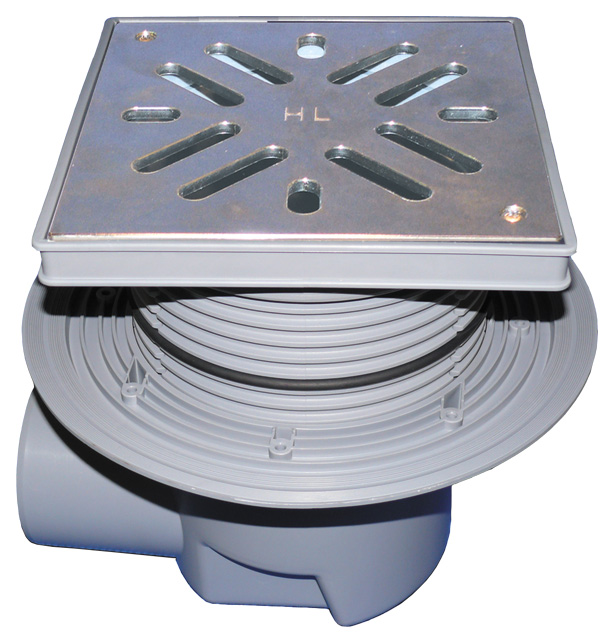

perfect-drain DN110 horizontal with flange, 240x240mm plastic/226x226mm stainless steel with frost-proof flap seal
perfect-drain DN110 horizontal with flange, cut-to-size plastic grate frame 42 - 130 mm / 240 x 240 mm, secured stainless steel grate 226 x 226 mm, strainer and frost- and drought-proof flap seal

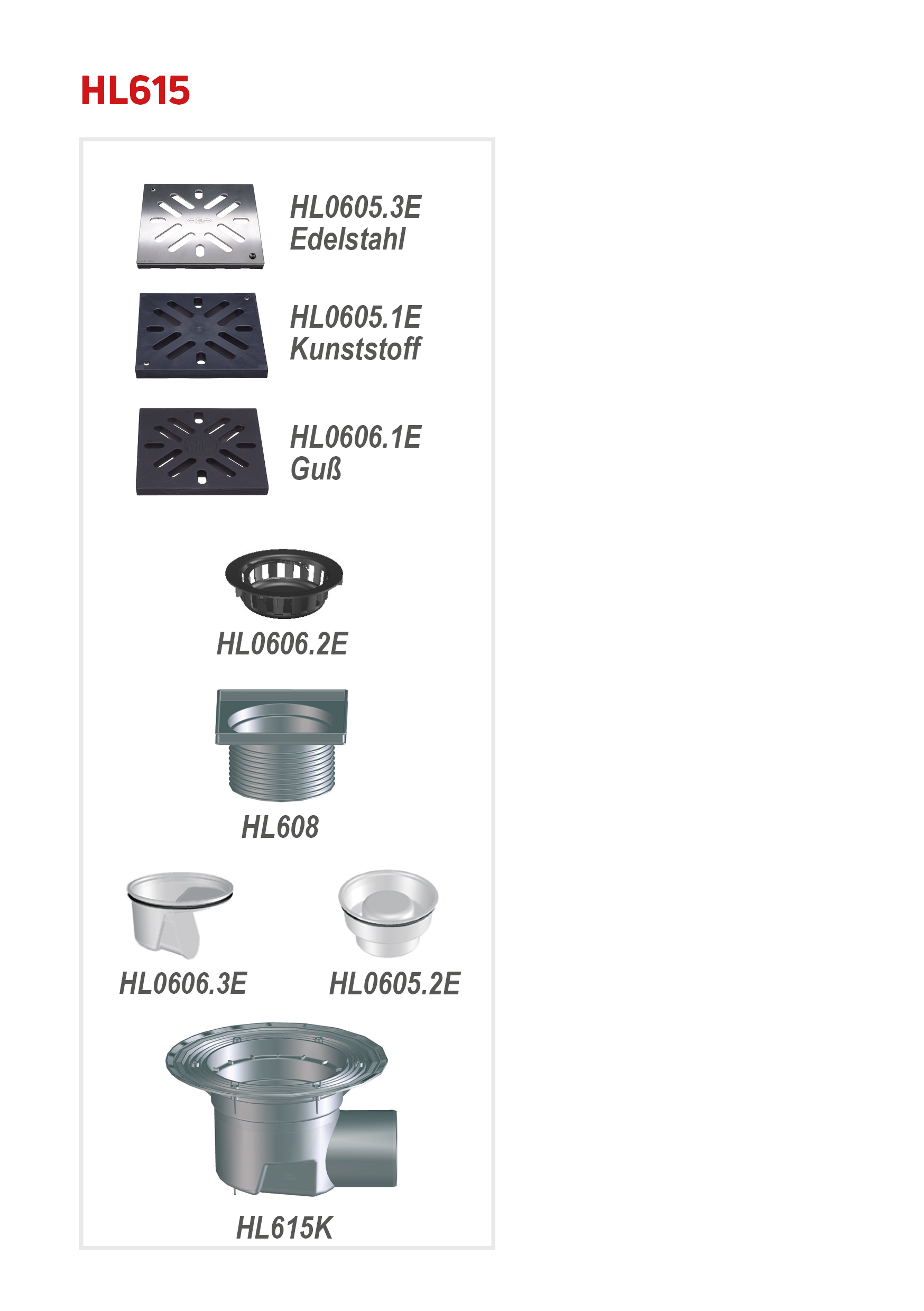

spare parts
HL0606.2EProduct overview / Major drains of "perfect series"strainer
HL0606.3EProduct overview / Major drains of "perfect series"flap cartridge
HL615KProduct overview / Major drains of "perfect series" / horizontalperfect-drain body DN110 horizontal with flange
HL622Product overview / Major drains of "perfect series"grating d 195mm/240x240mm/226x226mm stainless steel
HL0605.3EProduct overview / Major drains of "perfect series"stainless steel grate 226x226mm with adapter
HL0605.5EProduct overview / Major drains of "perfect series"screws M6x30mm (2 pcs.)
HL608Product overview / Major drains of "perfect series"extension 144mm/d 195mm
HL01056DProduct overview / Major drains of "perfect series"O-ring 180x6mm
attachment
HL0605.2EProduct overview / Major drains of "perfect series"trap cartridge
HL0605.4EProduct overview / Major drains of "perfect series"stainless steel grate (316) 226x226mm with adapter
HL190Product overview / Major drains of "perfect series" / attachmentsgravel guard d 195mm
HL191Product overview / Major drains of "perfect series" / attachmentsFlat leaf catcher for series Perfekt
HL609Product overview / Major drains of "perfect series"heating kit 36W/230V
HL619Product overview / Balcony and terrace / attachmentsfixing brackets
HL635NProduct overview / Roof drainsDrainage and inspection chamber for green roofs, gravel roofs and terraces. Including plastic frame and plastic grate
HL0635N.2Product overview / Roof drainsGalvanized steel grate for drainage and inspection chamber HL635N(.0)
HL0635N.3Product overview / Roof drainsPlastic cover for drainage and inspection chamber HL635N(.0)
HL636NProduct overview / Roof drainsExtension for drainage and inspection chamber HL635N(.0)
Alternatives
HL615HSProduct overview / Major drains of "perfect series" / horizontal / flap seal / bitumen membraneperfect-drain DN110 horizontal with bitumen membrane, 240x240mm plastic/226x226mm stainless steel with frost-proof flap seal
HL615HSWProduct overview / Major drains of "perfect series" / horizontal / trap seal / bitumen membraneperfect-drain DN110 horizontal with bitumen membrane, 240x240mm plastic/226x226mm stainless steel with trap seal
HL615SWProduct overview / Major drains of "perfect series" / horizontal / trap seal / flangeperfect-drain DN110 horizontal with flange, 240x240mm plastic/226x226mm stainless steel with trap seal
extensions
HL618Product overview / Sealing kits / Extensions / extensionsExtension 130mm/d 195mm with flange
HL618HProduct overview / Sealing kits / Extensions / extensionsextension 130mm/d 195mm with bitumen membrane
HL620Product overview / Sealing kits / Extensions / extensionsextension 105mm/d 195mm
Waterproofing Kits
HL86Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with EPDM collar d 500mm
HL86.0Product overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit
HL86.HProduct overview / Sealing kits / Extensions / waterproofing kitswaterproofing kit with bitumen membrane d 500mm
HL86.MProduct overview / Sealing kits / Extensions / waterproofing kitsSealing kit with laminated fleece
technical data
| material | PP |
| dimension | DN110 |
| capacity | 4,2 l/sec |
| weight | 3,3 [kg] |
| EAN | 9003076010943 |
| installation height | 235 - 310 mm |
| grate frame | 42-130mm/240x240mm |
| grate | Edelstahl 226x226mm |
| load class | A - 1,5 t (aussen) |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 4,05 [kg] |
| EAN/pack. | 9003076010943 |
| height/width/depth | 355/386/386 [mm] |
| volume | 0,052893580 [m3] |
single use pallet
| unit | 24 [pcs.] |
| weight | 117 [kg] |
| EAN/pack. |
| height/width/depth | 1650/800/1200 [mm] |
| volume | 1,584000000 [m3] |
