product link (product category - independent)

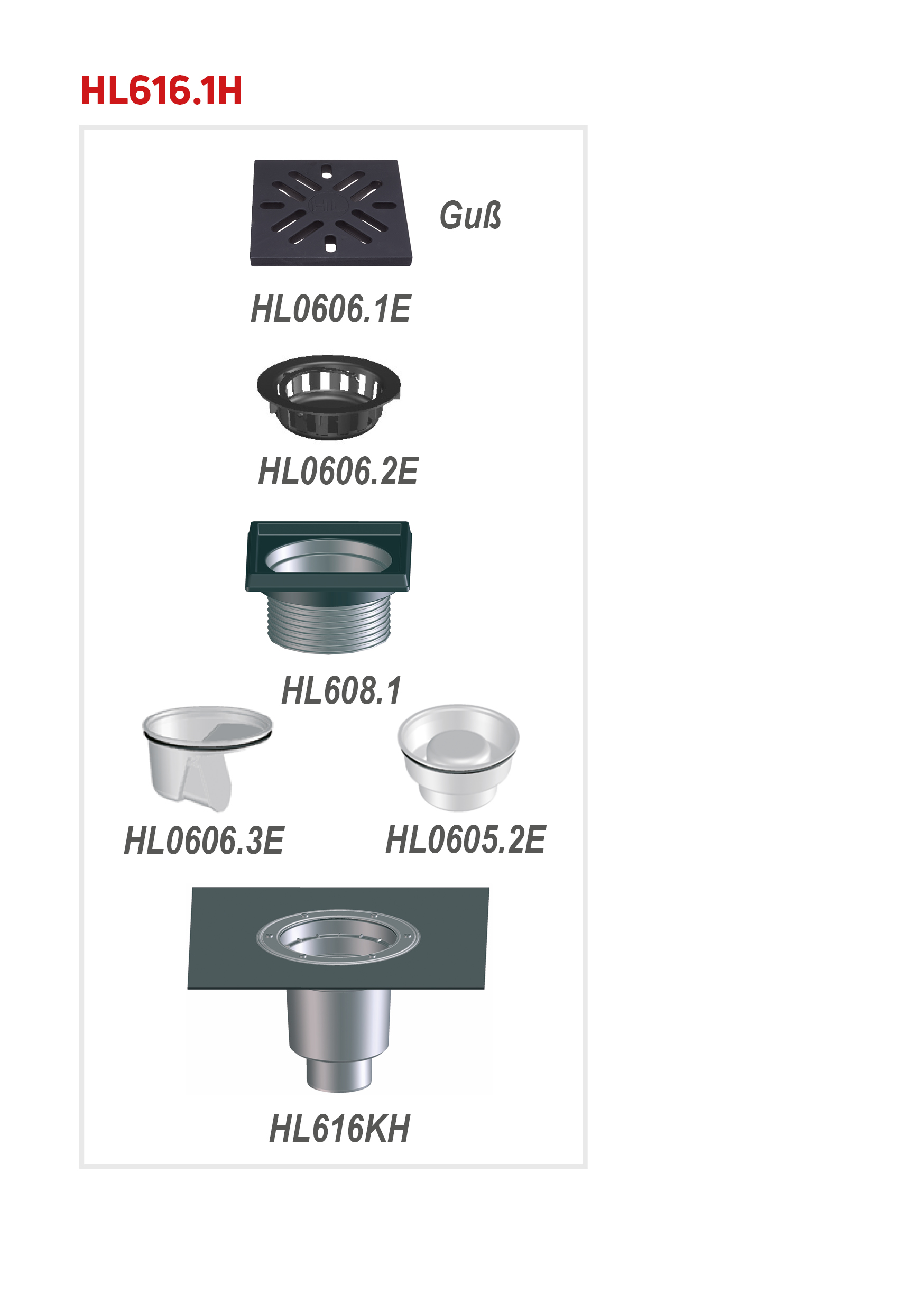

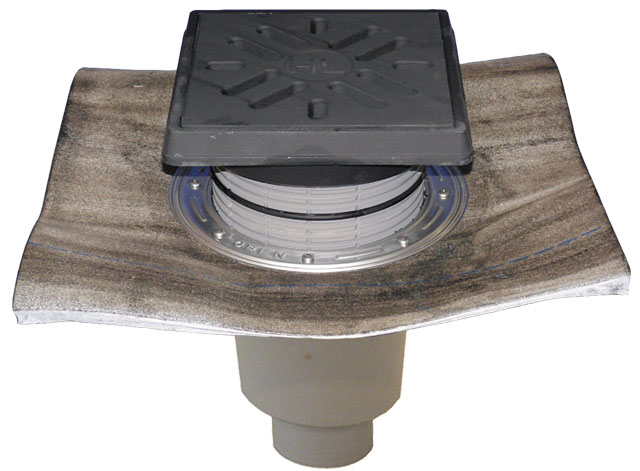

perfect-drain DN110 vertical with bitumen membrane d 500 mm for perfect and easy lap-joint waterproofing with bituminous membranes, cut-to-size plastic extension 55 - 135 mm, cast iron grate frame 260 x 260 mm, cast iron grate 226 x 226 mm, strainer and trap seal
material | PP |
dimension | DN110 |
capacity | 2,1 l/s |
weight | 13,523 [kg] |
EAN | 9003076011551 |
installation height |
grate frame | 55-135 mm/260 x 260 mm Guss |
grate | Gusseisen 226 x 226 mm |
load class | M - 12,5 t |
inlet |
standards |
unit | 1 [pcs.] |
weight | 14,27 [kg] |
EAN/pack. | 9003076011551 |
height/width/depth | 355/386/386 [mm] |
volume | 0,052893580 [m3] |
unit | 24 [pcs.] |
weight | 362,48 [kg] |
EAN/pack. |
height/width/depth | 1650/800/1200 [mm] |
volume | 1,584000000 [m3] |
