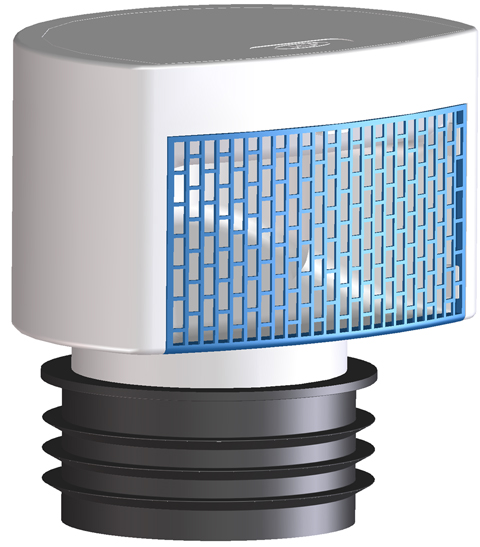

Ventpipe DN75/90/110 with integrated thermal insulation and massive lip-seal
Ventpipe DN75/90/110 according EN12380 A1 with removable insect cover (easy cleaning!), massive rubber membrane, integrated thermal insulation and lip-seal. Connectalble to sockets DN90 as well as to spigots of plastic or cast iron pipes DN75/110.

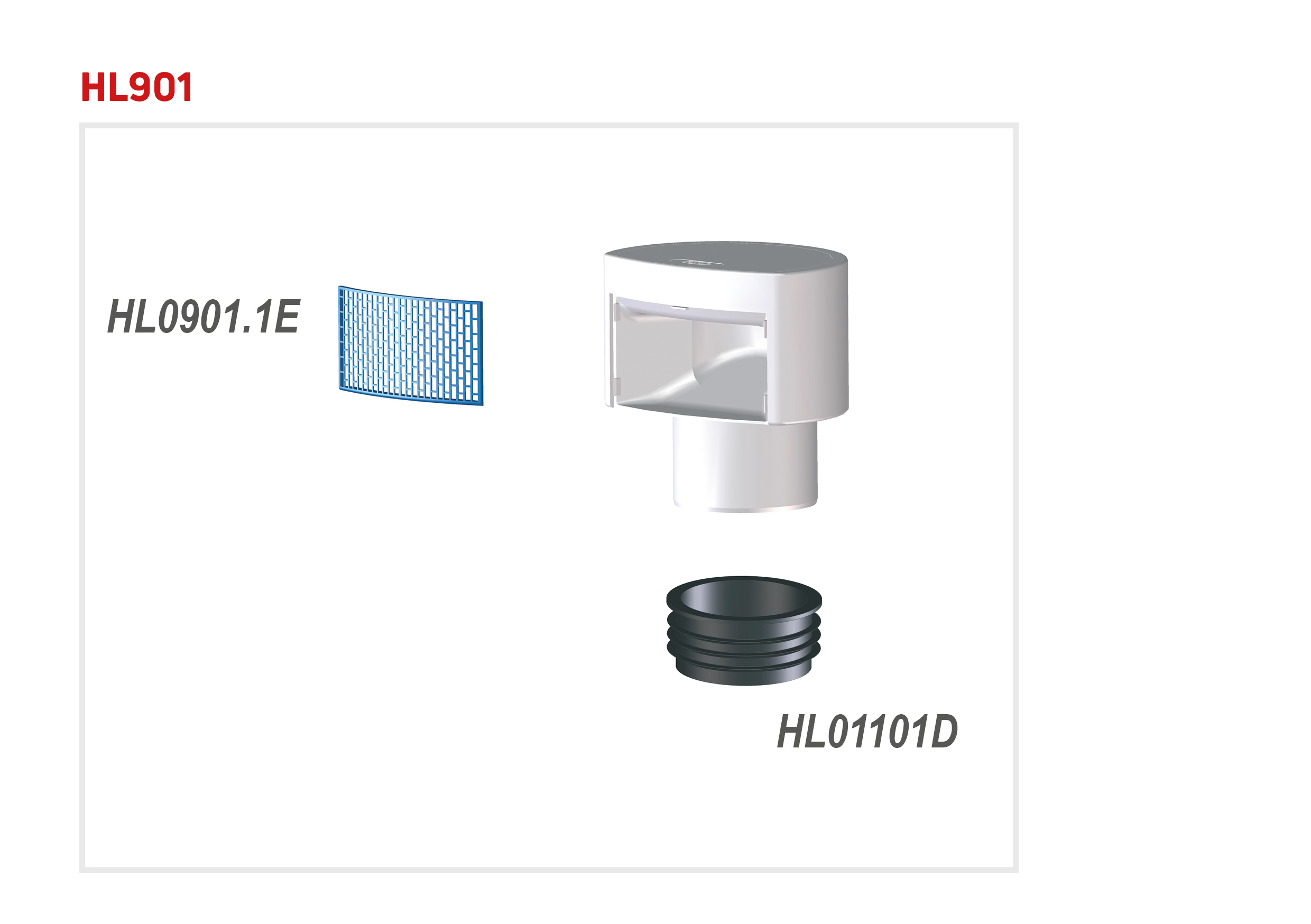

spare parts
HL01101DProduct overview / Air admittance valvesLip-seal for HL901
HL0901.1EProduct overview / Air admittance valvesInsect cover
Alternatives
technical data
| material | ABS/PP |
| dimension | DN75/90/110 |
| capacity | 32 l/s |
| weight | 0,362 [kg] |
| EAN | 9003076031269 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN12380 A1 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,37 [kg] |
| EAN/pack. | 9003076031269 |
| height/width/depth | 120/160/160 [mm] |
| volume | 0,003072000 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 4,14 [kg] |
| EAN/pack. | 9003076031276 |
| height/width/depth | 360/300/410 [mm] |
| volume | 0,044280000 [m3] |
single use pallet
| unit | 320 [pcs.] |
| weight | 142,5 [kg] |
| EAN/pack. |
| height/width/depth | 1650/850/1200 [mm] |
| volume | 1,683000000 [m3] |
