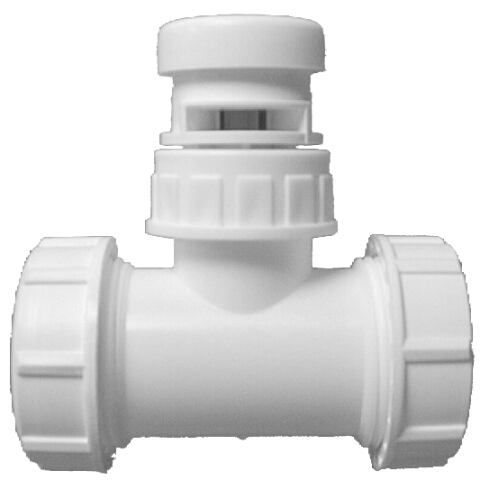

air admittance valve 1' with tee DN40x1 1/2'
air admittance valve 1' with tee DN40 x 1 1/2'

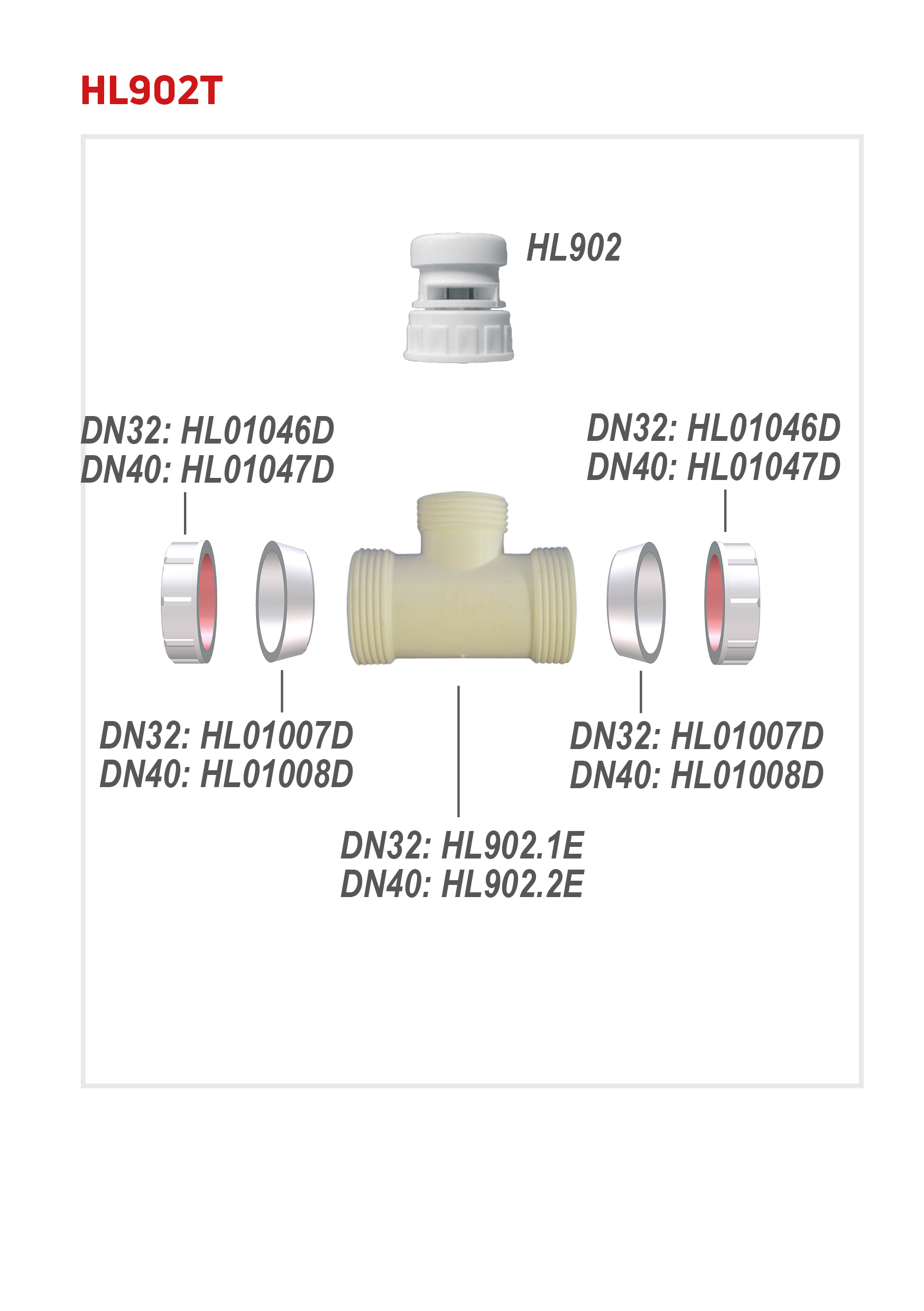

spare parts
HL0902.2EProduct overview / Air admittance valvestee DN40x1 1/2'x1' with locking nuts and gasket
HL01008DProduct overview / Kitchen trapsgasket wedge shaped T40
HL01047DProduct overview / Kitchen trapslocking nut 1 1/2'
HL902Product overview / Air admittance valvesair admittance valve 1'
HL01050DProduct overview / Washing devicesO-ring 18x2,5mm
technical data
| material | PP |
| dimension | DN40 x 6/4" x 1" |
| capacity |
| weight | 0,08 [kg] |
| EAN | 9003076004850 |
| installation height | 44 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN12380 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,086 [kg] |
| EAN/pack. | 9003076004850 |
| height/width/depth | 75/110/110 [mm] |
| volume | 0,000907500 [m3] |
carton
| unit | 100 [pcs.] |
| weight | 9,763 [kg] |
| EAN/pack. | 9003076004867 |
| height/width/depth | 338/387/592 [mm] |
| volume | 0,077437152 [m3] |
