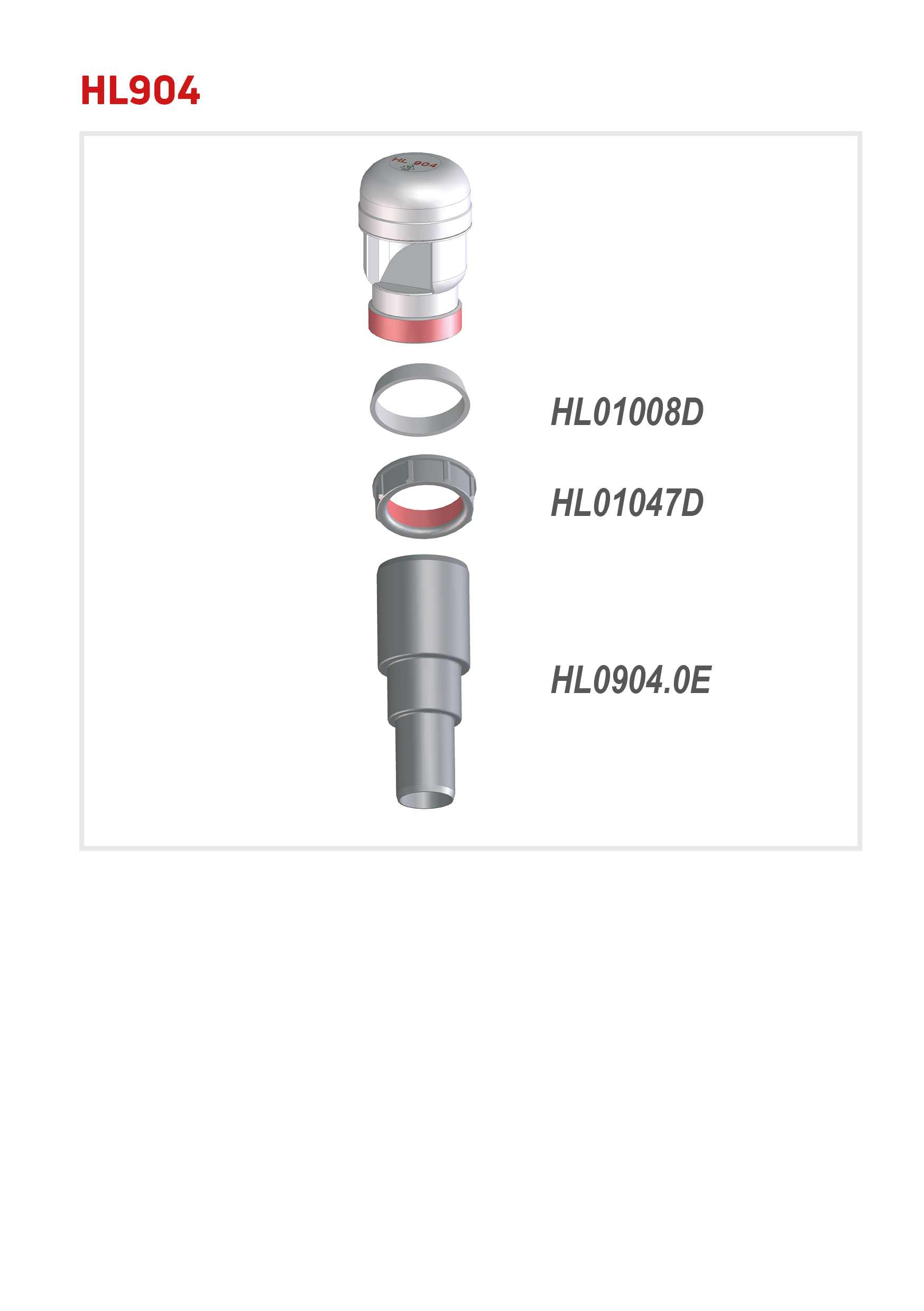

spare parts
HL01008DProduct overview / Kitchen trapsgasket wedge shaped T40
HL01047D.GProduct overview / Air admittance valveslocking nut 1 1/2' grey
HL0904.0EProduct overview / Air admittance valvesadapter DN32/50
attachment
used with
technical data
| material | PP |
| dimension | DN32/40/50 |
| capacity | 5,25 l/s |
| weight | 0,075 [kg] |
| EAN | 9003076909049 |
| installation height | 97 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards | EN12380-A1 |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,082 [kg] |
| EAN/pack. | 9003076909049 |
| height/width/depth | 150/70/70 [mm] |
| volume | 0,000735000 [m3] |
carton
| unit | 10 [pcs.] |
| weight | 1,078 [kg] |
| EAN/pack. |
| height/width/depth | 150/260/350 [mm] |
| volume | 0,013650000 [m3] |
Euro-pallet
| unit | 720 [pcs.] |
| weight | 98 [kg] |
| EAN/pack. |
| height/width/depth | 1800/800/1250 [mm] |
| volume | 1,800000000 [m3] |
