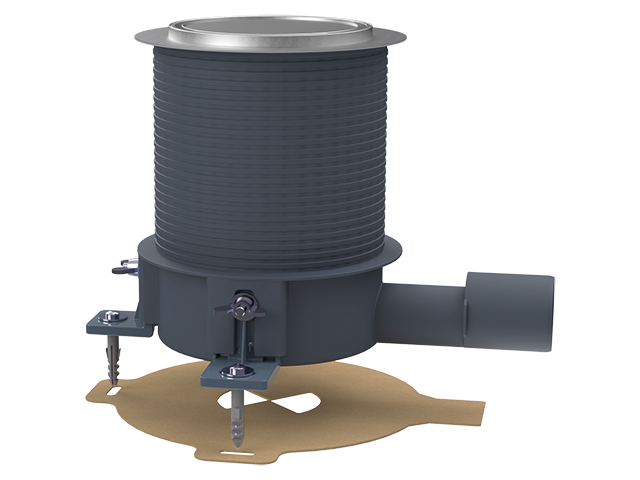

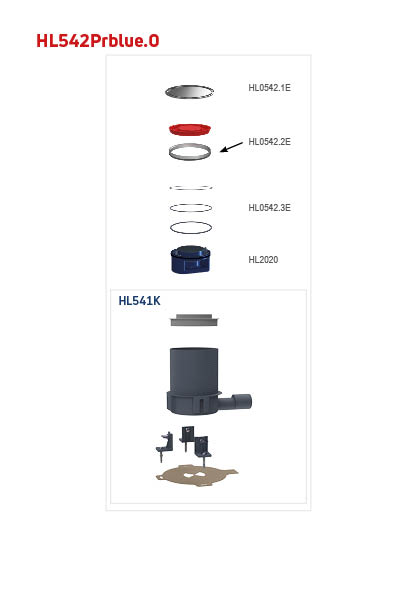

HL542Prblue.0 Liquid floor drain for coated floor coverings, with round stainless steel frame height-adjustable from 1 - 7 mm to match the finished floor covering height. With stainless steel flange for secure connection to the floor coating, incl. Primus blue odour barrier, combined cover, extension rings and lot cover. Without waterproofing fleece!
material | PP, Edelstahl V4A |
dimension | DN40/50 |
capacity | 0,4 l/s |
weight | 1,238 [kg] |
EAN | 9003076052622 |
installation height | 60 - 207 mm |
grate frame |
grate | d 129 mm Edelstahl |
load class | K3 - max. 300 kg |
inlet |
standards | EN1253-8, EN12056 |
unit | 1 [pcs.] |
weight | 1,406 [kg] |
EAN/pack. | 9003076052622 |
height/width/depth | 230/200/300 [mm] |
volume | 0,013800000 [m3] |
unit | 128 [pcs.] |
weight | 190 [kg] |
EAN/pack. |
height/width/depth | 1850/800/1200 [mm] |
volume | 1,776000000 [m3] |
