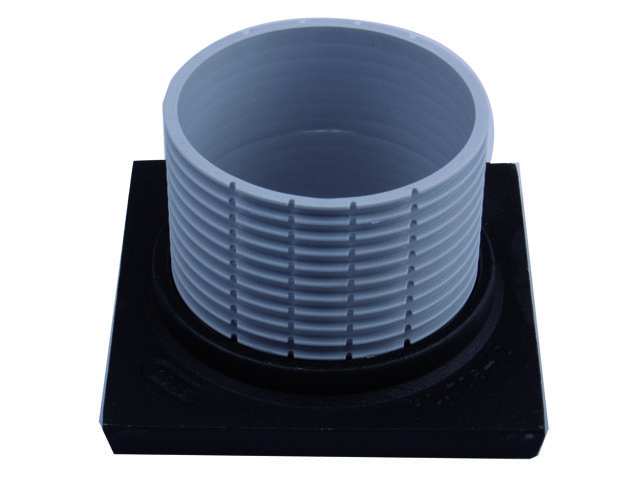

Grating d 110mm, cast iron frame 150x150mm
Grating d 110mm with cast iron frame 150x150mm incl. O-ring, hight over all 95mm
spare parts
used with
HL39GProduct overview / Floor drains / attachmentsgrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron
HL300GProduct overview / Floor drains / horizontal / flangefloor drain DN50 horizontal with inlet DN40/50, 150x150mm/137x137mm cast iron
HL310PrblueGProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange,with Primus Blue, cut-to-size plastic extension 34 - 75 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.
HL510PrblueGProduct overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, with Primus blue, cut-to-size plastic extension 34 - 78 mm, cast iron grate frame 150 x 150 mm and - grate 137 x 137 mm. Comes with lot cover.
HL70GProduct overview / Anti flood valves / Basement drain with backwater protectionfloor drain DN75/110 horizontal with non-return valve and 3 inlets DN40/50, 150x150mm/137x137mm cast iron
HL81.1GProduct overview / Floor drains / vertical / flangefloor drain DN50/75 ball-joint with trap seal, 150x150mm/137x137mm cast iron
HL81.1GHProduct overview / Floor drains / vertical / bitumen membranefloor drain DN50/75 ball-joint with bitumen membrane and trap seal, 150x150mm/137x137mm cast iron
HL81GProduct overview / Balcony and terrace / vertical / flangebalcony and terrace drain DN50/75 ball-joint with frost-proof flap seal, 150x150mm/137x137mm cast iron
HL81GHProduct overview / Balcony and terrace / vertical / bitumen membranebalcony and terrace drain DN50/75 ball-joint with bitumen membrane and frost-proof flap seal, 150x150mm/137x137mm cast iron
HL39PrblueGProduct overview / Floor drains / attachmentsGrating d 110 mm with cast iron frame 150 x 150 mm and -grate 137 x 137 mm. With Primus blue
HL39PrGProduct overview / Floor drains / attachmentsgrating d 110mm/cast iron frame 150x150mm/137x137mm cast iron with trap seal PRIMUS
HL510NPrGProduct overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal with trap seal PRIMUS, 150x150mm/137x137mm cast iron
technical data
| material | PP, GG |
| dimension | d 110mm |
| capacity |
| weight | 2,033 [kg] |
| EAN | 9003076025404 |
| installation height |
| grate frame | 150x150mm Rahmen |
| grate |
| load class |
| inlet |
| standards |
pcs.
| unit | 1 [pcs.] |
| weight | 2,033 [kg] |
| EAN/pack. | 9003076025404 |
| height/width/depth | 140/150/150 [mm] |
| volume | 0,003150000 [m3] |
