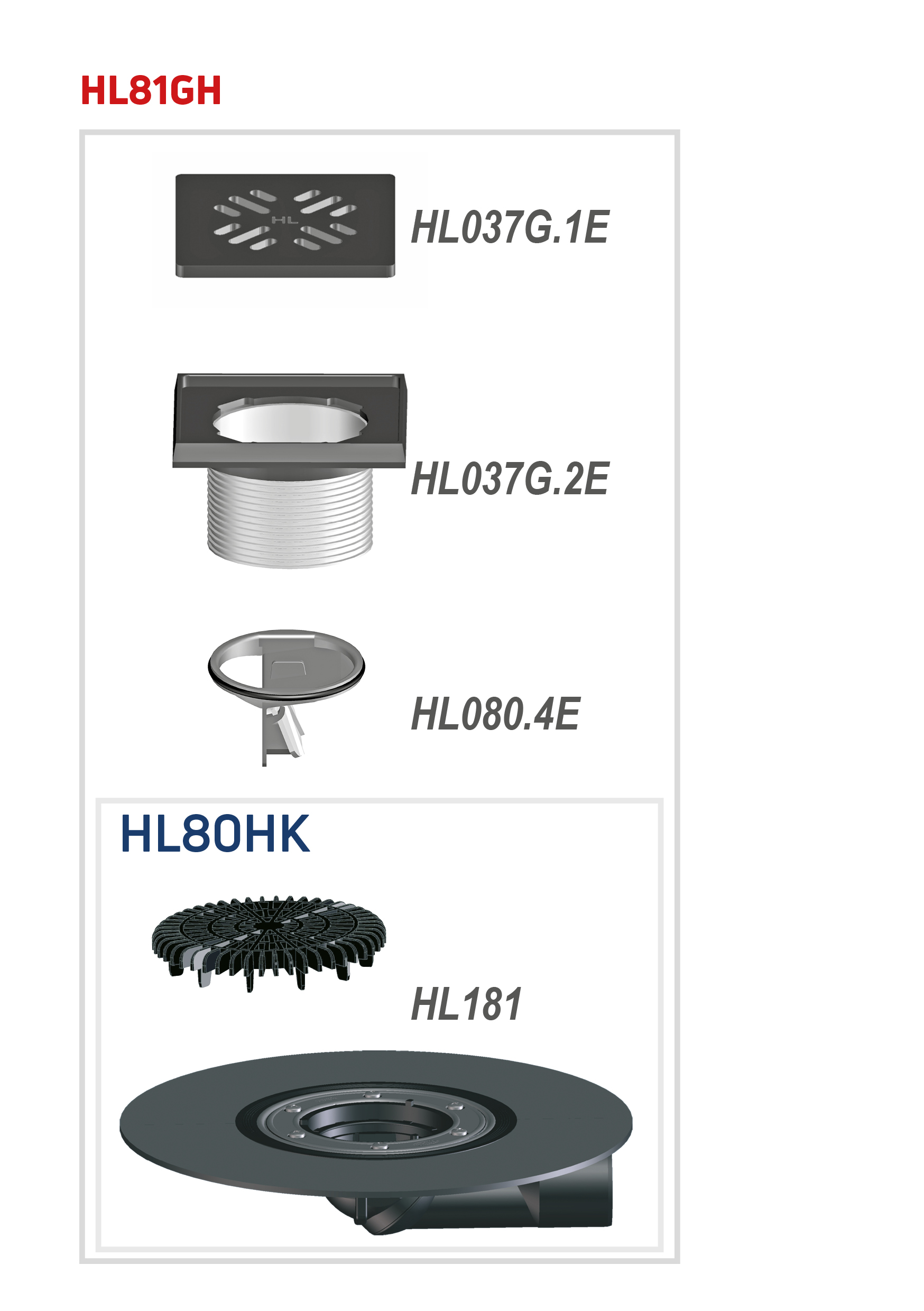

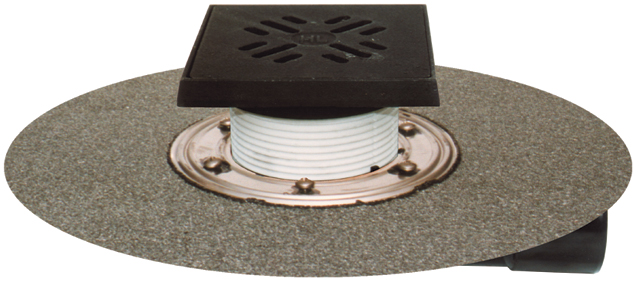

floor drain DN50/75 with ball-joint outlet (for horizontal and vertical use), bitumen membrane d 420 mm for perfect and easy lap-joint waterproofing with bituminous membranes, trap seal, cut-to-size plastic extension 34 - 73 mm, cast iron grate frame 150 x 150 mm and cast iron grate 137 x 137 mm. Comes with lot cover.
material | PP/PE |
dimension | DN50/75 |
capacity | 0,5 l/sec |
weight | 3,12 [kg] |
EAN | 9003076008391 |
installation height |
grate frame | 34-73mm/150x150mm Guss |
grate | Gusseisen 137x137mm |
load class | L - 1,5 t |
inlet |
standards |
unit | 1 [pcs.] |
weight | 3,37 [kg] |
EAN/pack. | 9003076008391 |
height/width/depth | 145/260/435 [mm] |
volume | 0,016399500 [m3] |
