Product overview

Floor drains

HL038N.3E

product link (product category - independent)


Download PDF

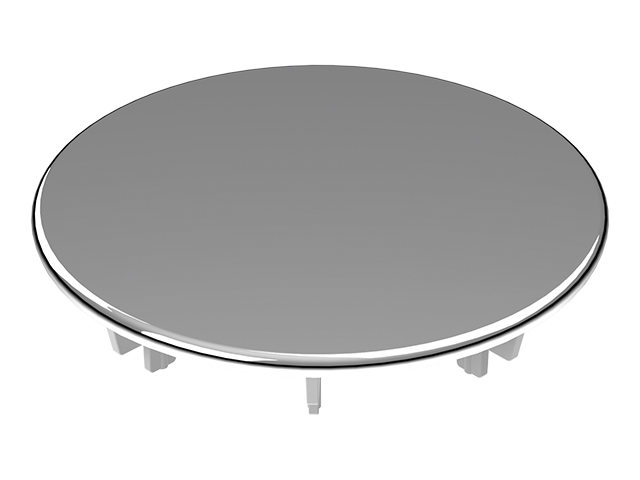

stainless steel plate round d 112mm

HL038N.3E

  • main data
  • technical data
  • packaging data
  • downloads

used with

 HL38N.1Product overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal  HL310NRProduct overview / Floor drains / vertical / flangefloor drain DN50/75/110 vertical round d 133mm/d 112mm  HL510NRProduct overview / Floor drains / horizontal / flangefloor drain DN40/50 horizontal round d 133mm/d 112mm  HL38NPrProduct overview / Floor drains / attachmentsgrating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal PRIMUS  HL38PrblueProduct overview / Floor drains / attachmentsGrating round d 110 mm with stainless steel frame trap seal Primus Blue .Grate D133/113  HL310PrblueRProduct overview / Floor drains / vertical / flangeFloor drain DN50/75/110 vertical with flange, with Primus Blue, cut-to-size plastic extension 20 - 75 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.  HL510PrblueRProduct overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, with Primus Blue, cut-to-size plastic extension 20 - 78 mm with stainless steel frame round d 133 mm and stainless steel plate d 112 mm. Comes with lot cover.

technical data

materialEdelstahl V2A
dimensiond 112mm
capacity
weight0,127
[kg]
EAN9003076006144
installation height
grate frame
grate
load classK - 300 kg
inlet
standards

PE-bag

unit1
[pcs.]
weight0,132
[kg]
EAN/pack.9003076006144
height/width/depth30/115/115
[mm]
volume0,000396750
[m3]

downloads

Foto Print
HL038N_3E_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
