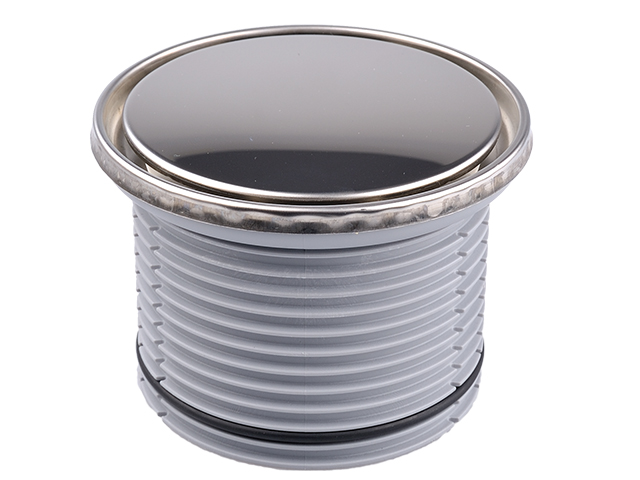

grating round d 110mm/stainless steel frame d 131mm/d 112mm with trap seal
grating round d 110 mm with stainless steel frame d 131 mm, stainless steel coverplate d 112 mm and trap seal. Total height 112 mm, frame height 16 mm
spare parts
HL038N.3E13 Floor drains/Attachments/Spare parts/HL038N.3Estainless steel plate round d 112mm
HL038N.4E13 Floor drains/Attachments/Spare parts/HL038N.4Egrate frame round d 110mm/93mm/stainless steel frame d 133mm incl. O-ring
HL01067D13 Floor drains/Attachments/Spare parts/HL01067DO-ring 92x4mm
HL0510.7E13 Floor drains/Attachments/Trap insert/HL0510/HL0510.7Etrap seal cartridge
HL0510.8E13 Floor drains/Attachments/Spare parts/HL0510.8Ebell trap
attachment
HL090.4E12 Balcony and terrace/Attachments/Trap insert/HL090.4E/HL090.4Eflap cartridge
HL61912 Balcony and terrace/Attachments/Others/HL619/HL619fixing brackets
HL340N13 Floor drains/Attachments/Extensions/HL340N/HL340Nextension 80mm/d 110mm incl. O-ring
HL85N12 Balcony and terrace/Attachments/Extensions/HL85N/HL85Nextension with flange incl. O-ring
HL85NH12 Balcony and terrace/Attachments/Extensions/HL85N/HL85NHextension incl. O-ring with bitumen membrane
Alternatives
technical data
| material | PP, Edelstahl |
| dimension | d 110 mm |
| capacity |
| weight | 0,435 [kg] |
| EAN | 9003076015498 |
| installation height | 93 mm |
| grate frame |
| grate | Edelstahl d 112 mm |
| load class | K3 - 300 kg |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,44 [kg] |
| height/width/depth | 100/150/150 [mm] |
| volume | 0.00225 [m3] |
downloads
HL38N_1_pr
HL38N_1_web
HL38N_1_gr
txt
66.H6 74 Aufzahlung (Az) auf Bodenablauf (BodenA) für einen Aufsatz (AS) 110 mm Durchmesser aus PP mit Aufsatzrahmen aus NIRO 133 mm Durchmesser, Rost aus NIRO 112 mm Durchmesser (rd), Belastungsklasse K3 mit Baustützrahmen. Im Positionsstichwort ist die Ausführung mit Standard Geruchsverschluss (GV) oder Modell "Primus blue" Geruchsverschluss (PrblueGV) angegeben
B. Az BodenA AS 110 PP AR NIRO 133 Rost NIRO 112 rd K3 GV (Stk)
HL Hutterer & Lechner Aufsatz rund mit Geruchsverschkuss HL38N.1
