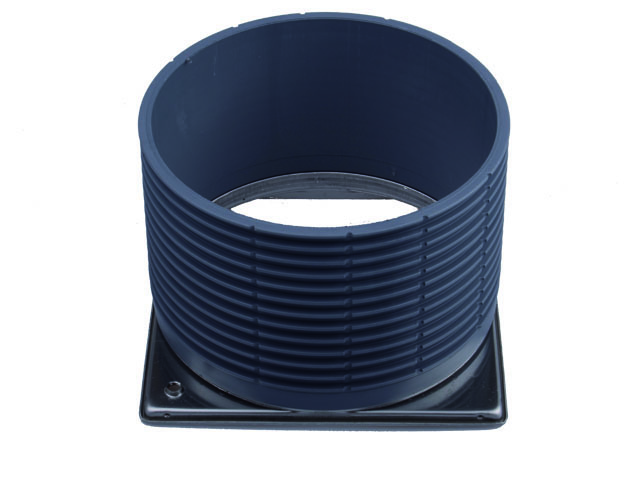

Extension d 146mm / 100mm. Stainless steel frame 145x145mm, system "Klick-Klack", with borewholes M6
Extension d 146mm, 100mm height. With stainless steel frame (V4A) 145x145mm, fixing system "Klick-Klack", with 2 borewholes M6 for screwable grates, incl. O-ring and supporting frame.
spare parts
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
used with
technical data
| material | PP, Edelstahl |
| dimension | d 146mm |
| capacity |
| weight | 0,17 [kg] |
| EAN | 9003076028412 |
| installation height |
| grate frame | 145x145mm |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,178 [kg] |
| EAN/pack. | 9003076028412 |
| height/width/depth | 100/150/150 [mm] |
| volume | 0,002250000 [m3] |
