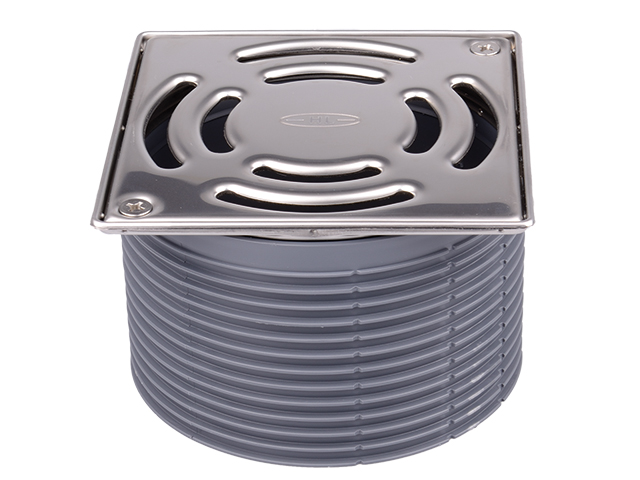

Extension d 146mm, stainless steel frame (V4A) 145x145mm, stainless steel grate 138x138mm, screwable.
Extension d 146mm with stainless steel frame (V4A) 145x145mm, stainless steel grate 138x138mm, screwable. Supporting frame included. Height over all 100mm.

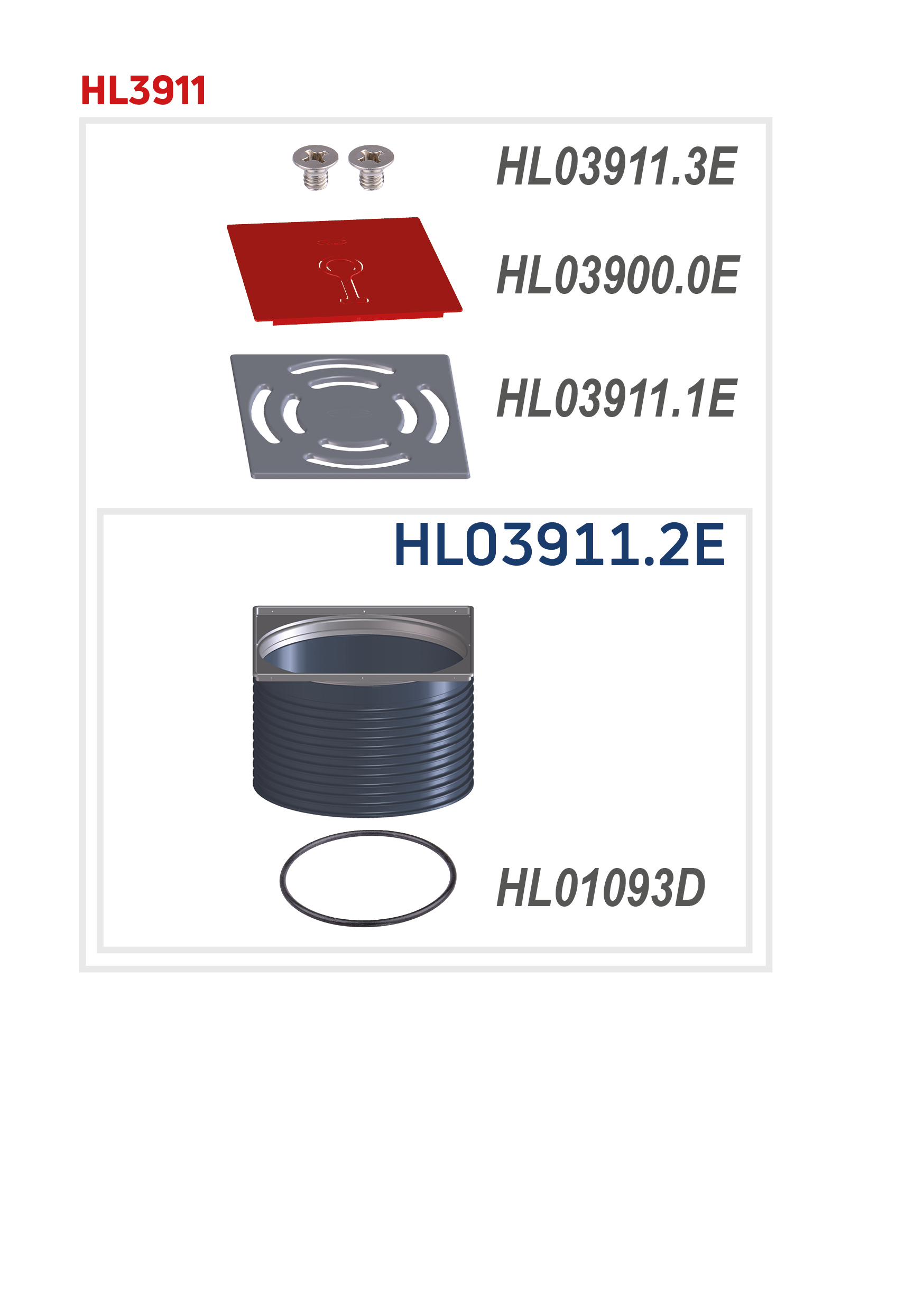

spare parts
HL03911.1E13 Floor drains/Attachments/Spare parts/HL03911.1EStainless steel grate 138x138mm, screwable
HL03911.2E13 Floor drains/Attachments/Spare parts/HL03911.2EExtension d 146mm / 100mm. Stainless steel frame 145x145mm, system "Klick-Klack", with borewholes M6
HL01093D13 Floor drains/Attachments/Spare parts/HL01093DO-ring 125x4
HL03900.0E13 Floor drains/Attachments/Spare parts/HL03900.0ELot cover 145x145 mm
HL03911.3E13 Floor drains/Attachments/Spare parts/HL03911.3ECountersunk srews M6x8, 2 pieces
attachment
technical data
| material |
| dimension |
| capacity |
| weight | 0,47 [kg] |
| EAN | 9003076028252 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,48 [kg] |
| height/width/depth | 120/150/150 [mm] |
| volume | 0.0027 [m3] |
downloads
HL3911_pr
HL3911_B
HL3911_gr
txt
66.H6 78 Aufzahlung (Az) auf Bodenablauf (BodenA) für einen Aufsatz (AS) 146 mm Durchmesser aus PP mit Aufsatzrahmen (AR) 145x145 mm, Rost aus NIRO 138x138 mm verschraubbar (vers.), mit Baustützrahmen. Im Positionsstichwort ist die Belastungsklasse angegeben.
A. Az BodenA AS 146 PP AR 145x145 Rost NIRO 138x138 vers.K3 (Stk)
HL Hutterer & Lechner Aufsatz zu Serie 60 Plus mit verschraubbarem Einlaufroste HL3911
