Floor drains
HL03928.1E
product link (product category - independent)
Techn. drawing
technical data
main data
packaging data
downloads
Download PDF
Extension d 146mm, stainless steel, brass plated frame, 145x145mm
main data
technical data
packaging data
downloads
spare parts
HL01093D
Product overview / Floor drains
O-ring 125x4
HL03900.0E
Product overview / Floor drains
Lot cover 145x145 mm
attachment
HL05100.7E
Product overview / Floor drains
Normal siphon complete
HL2100
Product overview / Floor drains / attachments
Siphon PRIMUS for HL3100Pr and HL5100Pr
HL3128
Product overview / Floor drains / attachments
Stainless steel grate "Hamam", brass plated, 138 x 138 mm
extensions
HL3400
Product overview / Sealing kits / Extensions / extensions
Elongation element d 146 mm/ 200 mm incl. O-ring
HL8500
Product overview / Sealing kits / Extensions / extensions
Elongation element 200 mm/ d 146 mm with flange and O-ring
used with
HL3928
Product overview / Floor drains / attachments

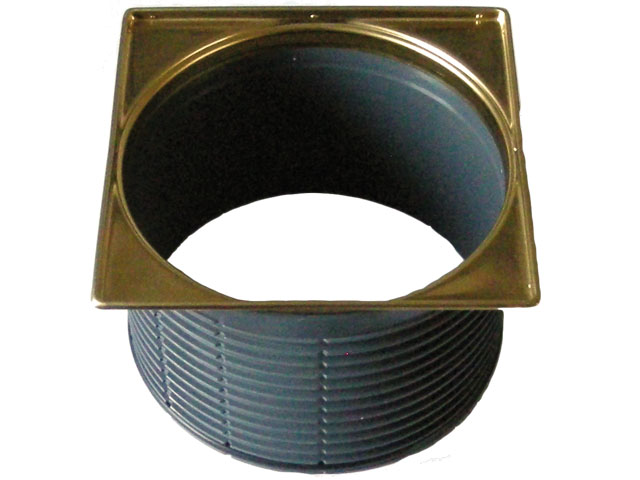

Extension "Hamam"d 146mm, stainless steel brass plated frame and grate 145x145mm / 138x138mm, "Klick-Klack"
technical data
material
PP, V4A Edelstahl PVD-besch.
dimension
d 146mm
capacity
weight
0,181
[kg]
EAN
9003076034802
installation height
100 mm
grate frame
145x145 mm
grate
load class
inlet
standards
PE-bag
unit
1
[pcs.]
weight
0,189
[kg]
EAN/pack.
9003076034802
height/width/depth
100/150/150
[mm]
volume
0,002250000
[m
3
]
downloads
Foto Print
HL03928_1E_pr.tif
max.
Foto Web
640x480/300dpi
Foto Parts List
150x150/72dpi
