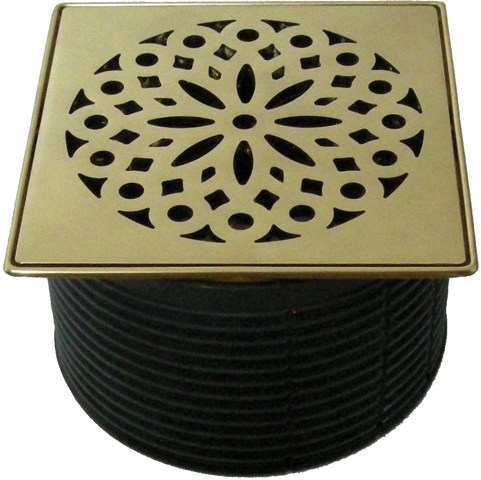

Extension "Hamam"d 146mm, stainless steel brass plated frame and grate 145x145mm / 138x138mm, "Klick-Klack"
Extension "Hamam"d 146mm, stainless steel brass plated frame and grate, 145x145mm / 138x138mm, "Klick-Klack"

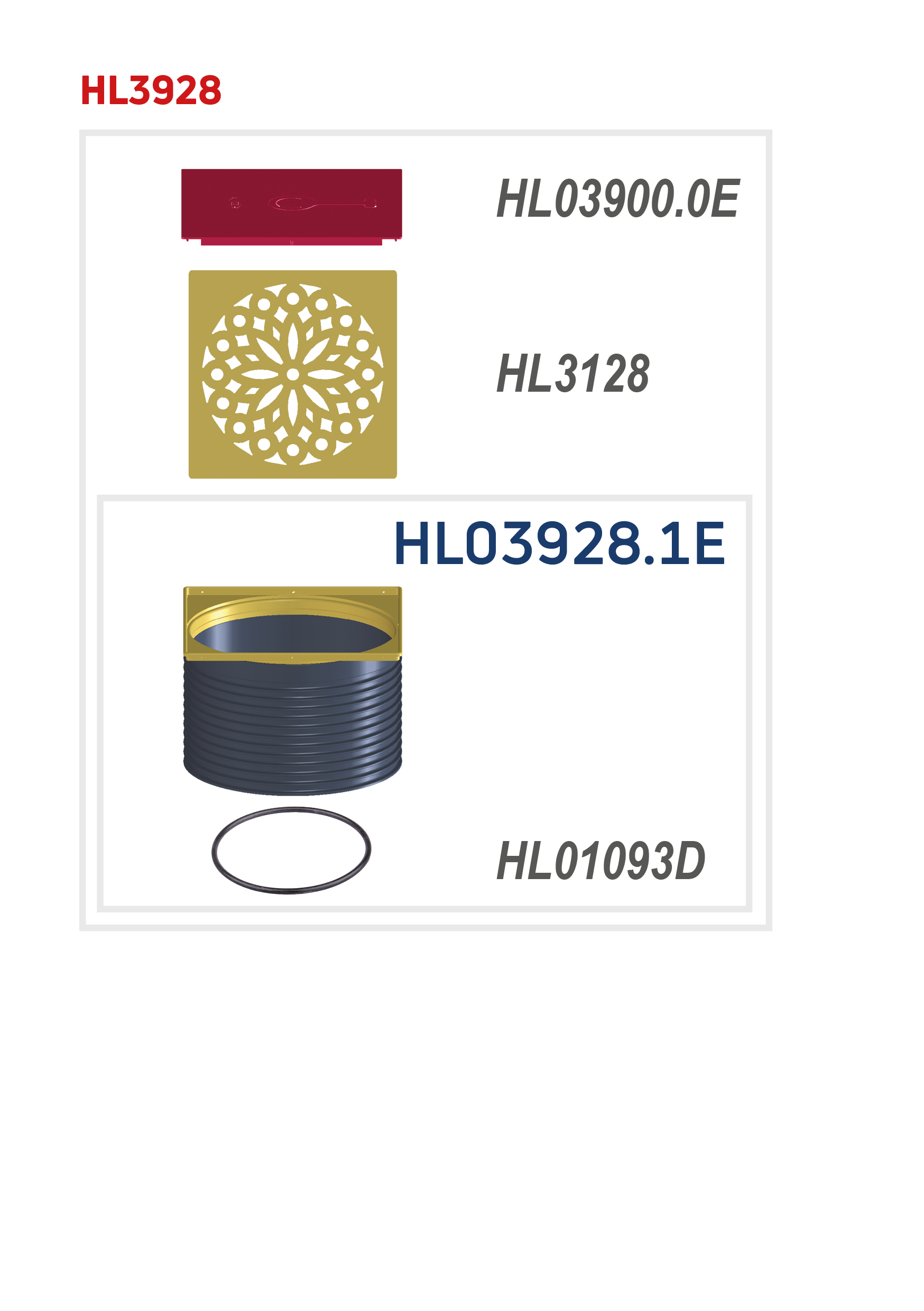

spare parts
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
HL03928.1EProduct overview / Floor drainsExtension d 146mm, stainless steel, brass plated frame, 145x145mm
HL01093DProduct overview / Floor drainsO-ring 125x4
HL03900.0EProduct overview / Floor drainsLot cover 145x145 mm
HL3128Product overview / Floor drains / attachmentsStainless steel grate "Hamam", brass plated, 138 x 138 mm
attachment
HL05100.7EProduct overview / Floor drainsNormal siphon complete
HL2100Product overview / Floor drains / attachmentsSiphon PRIMUS for HL3100Pr and HL5100Pr
extensions
technical data
| material | PP / Edelstahl PVD beschichtet |
| dimension |
| capacity |
| weight | 0,776 [kg] |
| EAN | 9003076034796 |
| installation height | 100mm |
| grate frame | 145x145mm |
| grate |
| load class | L15 - 1,5t |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 0,907 [kg] |
| EAN/pack. | 9003076034796 |
| height/width/depth | 155/205/205 [mm] |
| volume | 0,006513875 [m3] |
