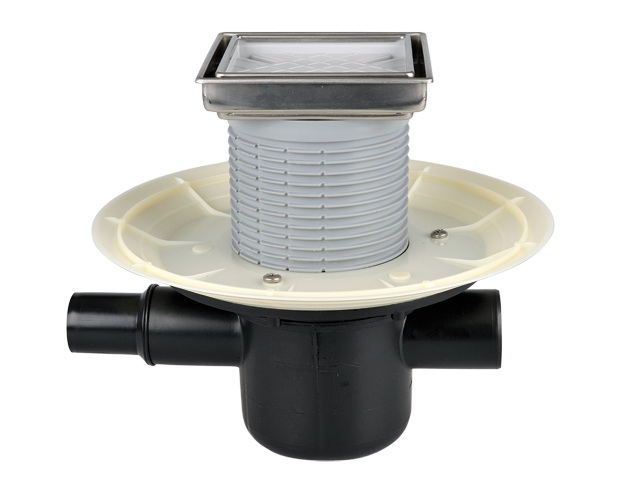

Floor drain horizontal with flange, sifon cartridge with backwater stop, side iinlet DN40/50 and tilable extension with stainless steel frame 132 x 132 mm / 112 x 112 mm, 10 - 80 mm shortable. Lot cover included.
material | PE |
dimension | DN50 |
capacity | 0,5 l/s |
weight | 0,85 [kg] |
EAN | 9003076034345 |
installation height | 155 mm |
grate frame | 10 - 80 mm / 132 x 132 mm |
grate | 112 x 112 mm |
load class | K3 - 300 kg |
inlet | DN40/50 |
standards |
unit | 1 [pcs.] |
weight | 1,144 [kg] |
EAN/pack. | 9003076034345 |
height/width/depth | 175/292/392 [mm] |
volume | 0,020031200 [m3] |
