Balcony- and terrace drain body DN40/50 horizontal, with deep, pre-installed lot cover.

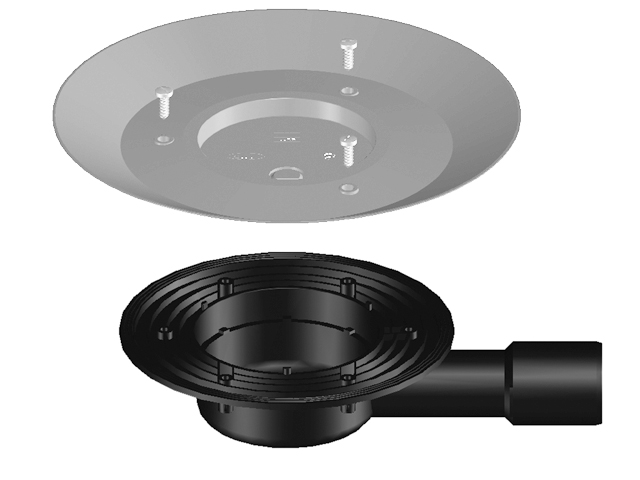

Balcony- and terrace drain body DN40/50 horizontal with flange and deep, pre-installed lot cover.
spare parts
attachment
HL3020Product overview / Floor drains / attachmentsExtension with tilable frame d 110mm, stainless steel frame 132x132mm / 112x112mm
HL0510.7EKKProduct overview / Floor drainstrap seal cartridge
HL090.4EKKProduct overview / Balcony and terraceflap cartridge
HL2000KKProduct overview / Floor drains / attachmentstrap seal PRIMUS
extensions
HL340NProduct overview / Sealing kits / Extensions / extensionsextension 80mm/d 110mm incl. O-ring
HL85N-3020Product overview / Sealing kits / Extensions / extensionsExtension with flange and O-ring and deep, pre-installed lot cover, fitting to HL3020 series.
used with
HL90.2-3020Product overview / Balcony and terrace / horizontal / flangeBalcony- and terrace drain DN40/50 horizontal with stench flap and extension with tilable frame 132x132mm / 112x112mm.
HL90-3020Product overview / Balcony and terrace / horizontal / flangeBalcony- and terrace drain DN40/50 horizontal with extension with tilable frame 132x132mm / 112x112mm.
HL90Prblue-3020Product overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with trap Primus blue and extension with tilable frame 132x132mm / 112x112mm.
technical data
| material | PP |
| dimension | DN40/50 |
| capacity |
| weight | 0,414 [kg] |
| EAN | 9003076034314 |
| installation height | 79 mm |
| grate frame |
| grate |
| load class |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 0,708 [kg] |
| EAN/pack. | 9003076034314 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
