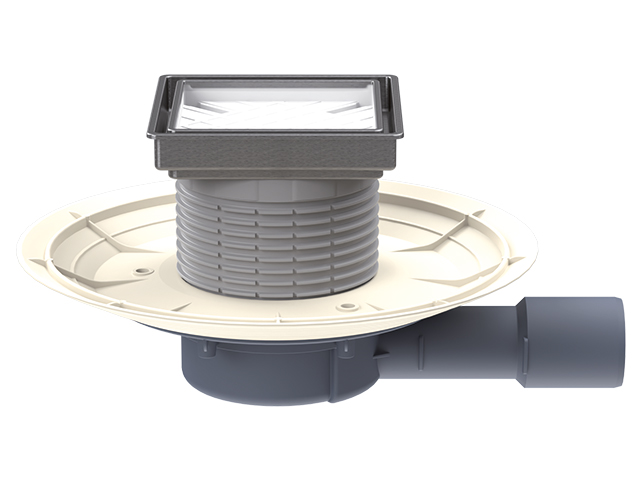

Floor drain DN40/50 horizontal with trap Primus blue and extension with tilable frame 132x132mm / 112x112mm, shortable from 10-80mm. Deep, pre-installed lot cover included.

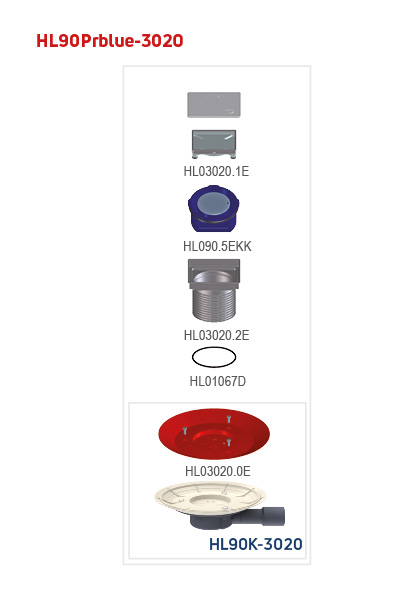

spare parts
HL090.5EKKProduct overview / Floor drainsTrap Primus blue, for system "Klick-Klack"
HL01086DProduct overview / Floor drainsO-ring 88x5mm
HL3020Product overview / Floor drains / attachmentsExtension with tilable frame d 110mm, stainless steel frame 132x132mm / 112x112mm
HL03020.1EProduct overview / Floor drainsMould for tiles 112x112mm, fits to HL3020
HL90K-3020Product overview / Floor drains / horizontal / flangeBalcony- and terrace drain body DN40/50 horizontal, with deep, pre-installed lot cover.
HL03020.0EProduct overview / Floor drainsDeep lot cover, fits to HL3020 series
technical data
| material | PP, ABS, Edelstahl |
| dimension | DN40/50 |
| capacity | 10mm-0,45l/s, 20mm-0,50l/s |
| weight | 0,765 [kg] |
| EAN | 9003076050529 |
| installation height | 57mm |
| grate frame | 10-80mm/132x132mm |
| grate | Edelstahl 112x112 (104x104X12) |
| load class | K3 - 300kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 1 [pcs.] |
| weight | 1,059 [kg] |
| EAN/pack. | 9003076050529 |
| height/width/depth | 175/292/392 [mm] |
| volume | 0,020031200 [m3] |
single use pallet
| unit | 72 [pcs.] |
| weight | 86,5 [kg] |
| EAN/pack. |
| height/width/depth | 1900/800/1200 [mm] |
| volume | 1,824000000 [m3] |
