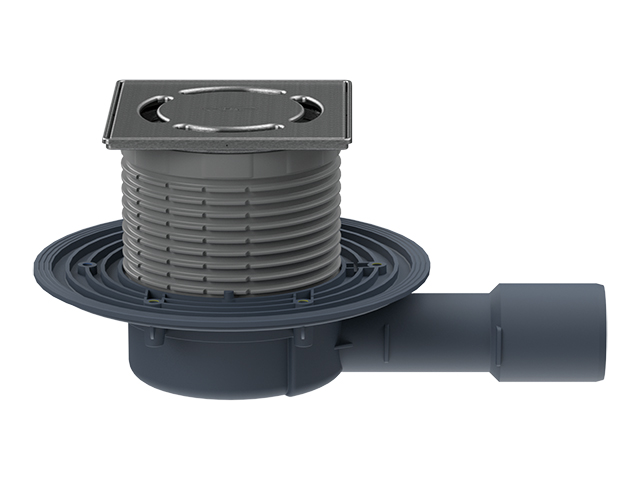

Floor drain DN40/50 horizontal with flange, sifon Primus blue, extension 12-70mm, stainless steel frame 121x121mm and stainless steel grate 115x115mm, supporting frame and lot cover are included. Water height 30mm.
Floor drain DN40/50 horizontal with flange, sifon Primus blue, extension 12-70mm, stainless steel frame 121x121mm and stainless steel grate 115x115mm, supporting frame and lot cover are included. Min. height over all 57mm.

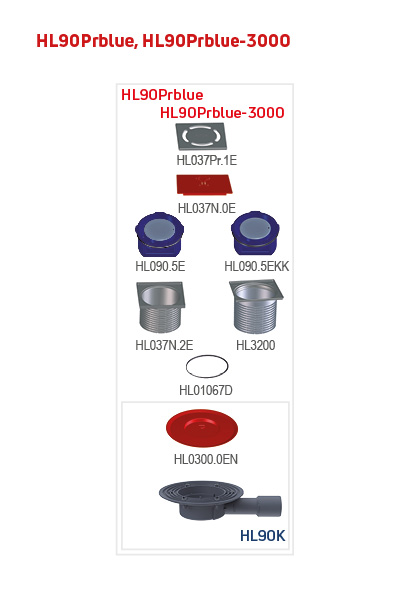

spare parts
HL3000FPrblueProduct overview / Floor drains / attachmentsExtension d 110mm, stainless steel frame 121x121mm/115x115mm, system "Klick-Klack", with trap Primus blue and supporting frame.
HL090.5EKKProduct overview / Floor drainsTrap Primus blue, for system "Klick-Klack"
HL01086DProduct overview / Floor drainsO-ring 88x5mm
HL90KProduct overview / Floor drains / horizontal / flangebalcony and terrace drain body DN40/50 horizontal
attachment
HL3127Product overview / Floor drains / attachmentsStainless steel grate 115x115mm 'Primus Design'
HL3210Product overview / Floor drains / attachmentsExtension d 110/100mm, stainless steel frame (V4A) 121x121mm, incl. O-Ring. System "Klick-Klack".
HL6200Product overview / Barriere-free showers / attachmentsSound protection pad 500x500mm
technical data
| material | PP, Edelstahl |
| dimension | DN40/50 |
| capacity | 10mm-0,39l/s, 20mm-0,43l/s |
| weight | 0,685 [kg] |
| EAN | 9003076050512 |
| installation height | 57mm |
| grate frame | 10-80mm/121x121mm |
| grate | Edelstahl 115x115mm |
| load class | K3 - 300kg |
| inlet |
| standards | EN 1253 |
carton
| unit | 1 [pcs.] |
| weight | 0,872 [kg] |
| EAN/pack. | 9003076050512 |
| height/width/depth | 155/225/295 [mm] |
| volume | 0,010288125 [m3] |
single use pallet
| unit | 143 [pcs.] |
| weight | 135 [kg] |
| EAN/pack. |
| height/width/depth | 1950/800/1200 [mm] |
| volume | 1,872000000 [m3] |
