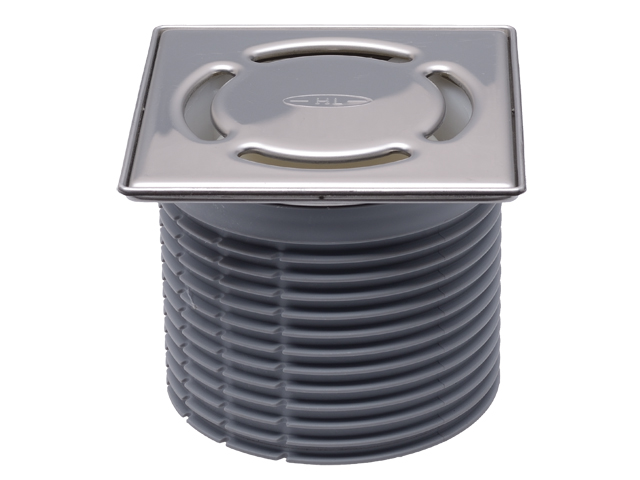

Extension d 110mm, stainless steel frame 121x121mm/115x115mm, system "Klick-Klack", with trap Primus blue and supporting frame.
Extension d 110mm, stainless steel frame 121x121mm/115x115mm, system "Klick-Klack", with trap Primus blue and supporting frame. Works with or without water. Supporting frame included. Height overall 100mm.
spare parts
HL090.5EKKProduct overview / Floor drainsTrap Primus blue, for system "Klick-Klack"
HL01086DProduct overview / Floor drainsO-ring 88x5mm
used with
HL90Prblue-3000Product overview / Floor drains / horizontal / flangeFloor drain DN40/50 horizontal with flange, sifon Primus blue, extension 12-70mm, stainless steel frame 121x121mm and stainless steel grate 115x115mm, supporting frame and lot cover are included. Water height 30mm.
HL90PrblueD-3000Product overview / Floor drains / horizontal / flangeFloor drain horizontal with fleece laminated flange, "Primus blue" trap, cuttable extension, plastic frame and stainless steel grate and frame ; fleece laminated membrane, supporting frame and lot cover foil included.
technical data
| material | PP, Edelstahl |
| dimension | d 110mm |
| capacity |
| weight | 0,446 [kg] |
| EAN | 9003076050574 |
| installation height |
| grate frame |
| grate | Edelstahl 121x121/115x115mm |
| load class |
| inlet |
| standards |
PE-bag
| unit | 1 [pcs.] |
| weight | 0,452 [kg] |
| EAN/pack. | 9003076050574 |
| height/width/depth | 125/132/132 [mm] |
| volume | 0,002178000 [m3] |
