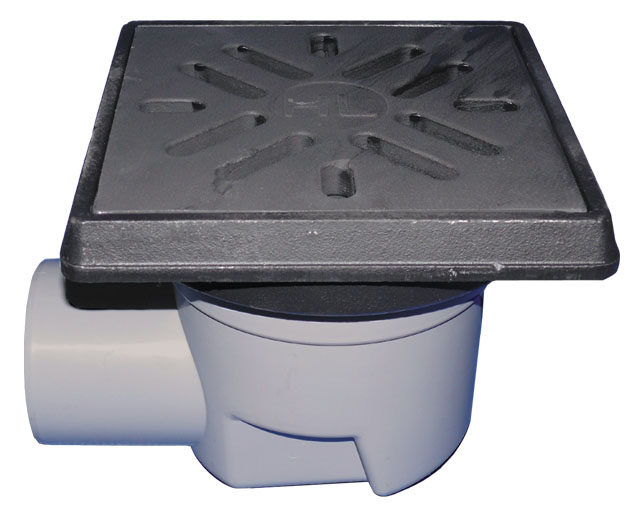

perfect-drain DN110 horizontal 260x260mm/226x226mm cast iron with frost-proof flap seal
perfect-drain DN110 horizontal with cast iron grate frame 260 x 260 mm, cast iron grate 226 x 226 mm, strainer and frost- and drought-proof flap seal

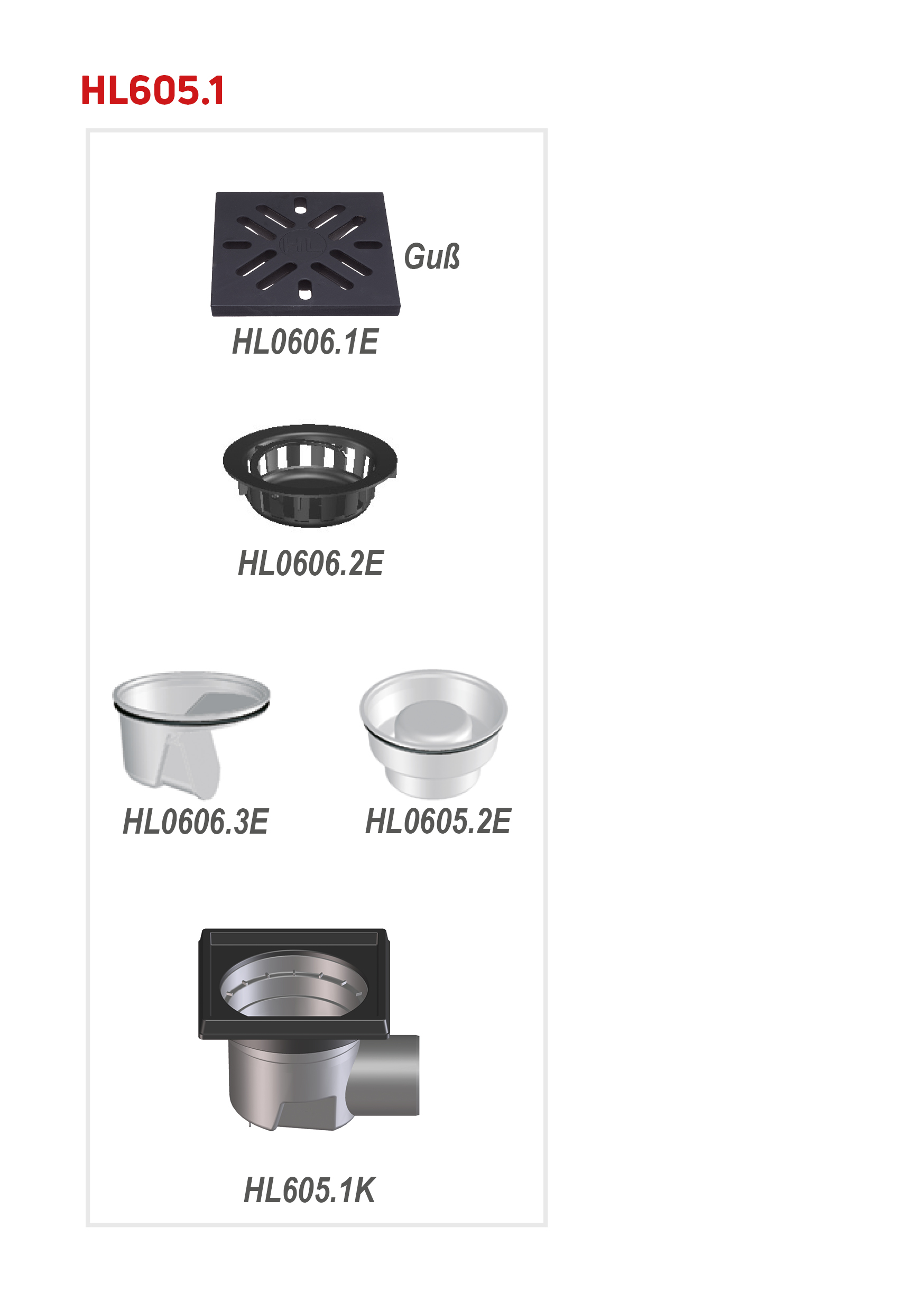

spare parts
HL0606.1EProduct overview / Major drains of "perfect series"cast iron grate 226x226mm
HL0606.2EProduct overview / Major drains of "perfect series" / attachmentsstrainer
HL0606.3EProduct overview / Major drains of "perfect series"flap cartridge
HL605.1KProduct overview / Major drains of "perfect series" / horizontalperfect-drain body DN110 horizontal 260x260mm cast iron
attachment
HL0605.2EProduct overview / Major drains of "perfect series"trap cartridge
HL609Product overview / Major drains of "perfect series"heating kit 36W/230V
Alternatives
extensions
HL608Product overview / Major drains of "perfect series" / attachmentsextension 144mm/d 195mm
HL608.1Product overview / Major drains of "perfect series" / attachmentsextension 144mm/d 195mm with cast iron frame
HL618Product overview / Sealing kits / Extensions / extensionsExtension 130mm/d 195mm with flange
HL618HProduct overview / Sealing kits / Extensions / extensionsextension 130mm/d 195mm with bitumen membrane
HL620Product overview / Sealing kits / Extensions / extensionsextension 105mm/d 195mm
technical data
| material | PP / GG |
| dimension | DN110 |
| capacity | 4,2 l/s |
| weight | 11,813 [kg] |
| EAN | 9003076006700 |
| installation height | 215 mm |
| grate frame | 260 x 260 mm Guss |
| grate | Gusseisen 226x226mm |
| load class | B - 12,5t (aussen) |
| inlet |
| standards |
carton
| unit | 1 [pcs.] |
| weight | 12,181 [kg] |
| EAN/pack. | 9003076006700 |
| height/width/depth | 287/275/275 [mm] |
| volume | 0,021704375 [m3] |
single use pallet
| unit | 48 [pcs.] |
| weight | 604,7 [kg] |
| EAN/pack. |
| height/width/depth | 1400/850/1200 [mm] |
| volume | 1,428000000 [m3] |
