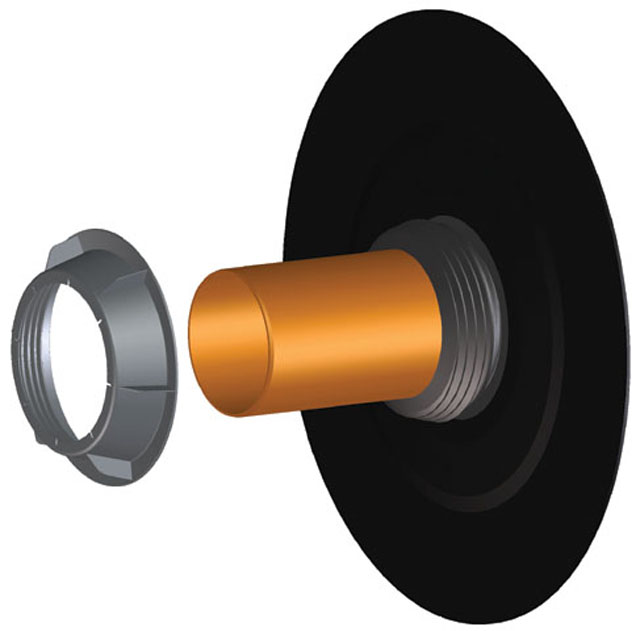

sealing kit for pipe inflow channels for sealing pipes (plastic, cast iron, stainless steel) d 160 - 165 mm passing through walls (basement outer walls / base plates etc.). Massive lip seal with high-quality bitumen collar and rugged locknut - easy to slide on (also over pipe collars) and - due to the solely usage of elastic materials - attachable also near building corners. Leak tightness certified up to 6 m water column (also with tolerance of up to 10% from right angle)!
material | Elastomer/Bitumen/PP |
dimension | DN160 |
capacity |
weight | 2,1 [kg] |
EAN | 9003076021611 |
installation height |
grate frame |
grate |
load class |
inlet |
standards | DIN 19195-4 |
unit | 1 [pcs.] |
weight | 2,654 [kg] |
EAN/pack. | 9003076021611 |
height/width/depth | 93/580/580 [mm] |
volume | 0,031285200 [m3] |
unit | 36 [pcs.] |
weight | 106 [kg] |
EAN/pack. |
height/width/depth | 1900/800/1200 [mm] |
volume | 1,824000000 [m3] |
