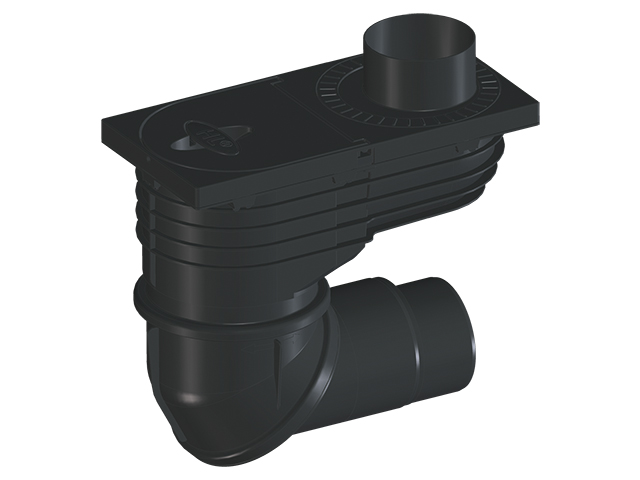

Rain hopper with outlet DN110/125 with 360° ball joint (stepless twist from 0°-90°), leaf catcher with emergency overflow, frost-proof stench-flap with gasket, inspection lid with handle and horizontally shiftable pipe fittings for rainwater pipes d 80, d 100 and d 120 mm.
| material | PP |
| dimension | DN110/125 |
| capacity | DN110: 10 l/s. DN125: 11 l/s |
| weight | 1,627 [kg] |
| EAN | 9003076044122 |
| installation height |
| grate frame |
| grate |
| load class |
| inlet | senkrecht |
| standards |
| unit | 1 [pcs.] |
| weight | 2,119 [kg] |
| EAN/pack. | 9003076044122 |
| height/width/depth | 195/330/380 [mm] |
| volume | 0,024453000 [m3] |
| unit | 60 [pcs.] |
| weight | 138 [kg] |
| EAN/pack. |
| height/width/depth | 1825/800/1215 [mm] |
| volume | 1,773900000 [m3] |
