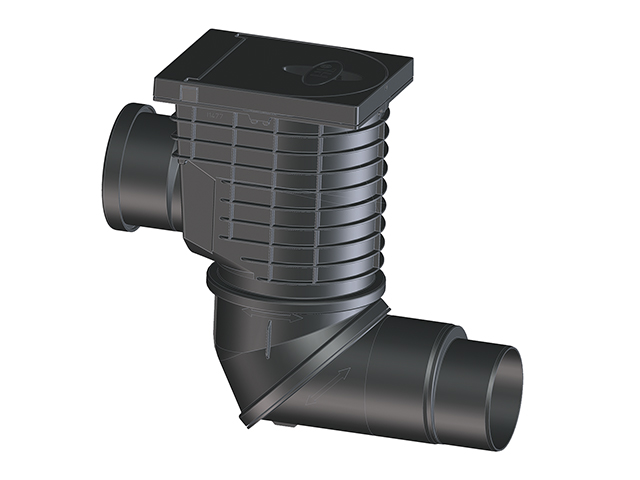

Rain hopper with horizontal inlet DN110 (socket) and outlet DN110/125; downpipes, which are inside the facade, may be connected waterproof to the socket of the rain hopper. With 360° ball joint (stepless twist from 0°-90°), leaf catcher with emergency overflow, frost-proof stench-flap with gasket and inspection lid with handle.
material | PP |
dimension | DN110/125 |
capacity | DN110: 10 l/s. DN125: 11 l/s |
weight | 1,556 [kg] |
EAN | 9003076045594 |
installation height |
grate frame |
grate |
load class |
inlet | DN110 waagrecht |
standards |
unit | 1 [pcs.] |
weight | 2,065 [kg] |
EAN/pack. | 9003076045594 |
height/width/depth | 395/200/390 [mm] |
volume | 0,030810000 [m3] |
unit | 40 [pcs.] |
weight | 92,6 [kg] |
EAN/pack. |
height/width/depth | 1850/800/1200 [mm] |
volume | 1,776000000 [m3] |
